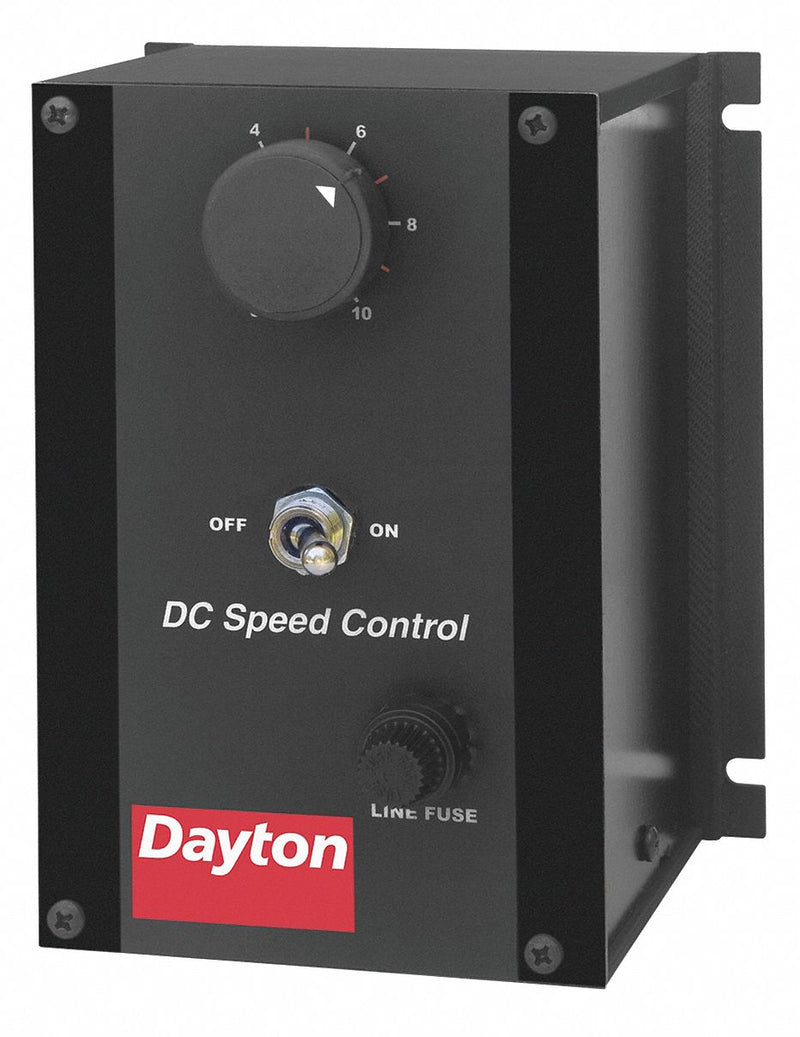

Dayton SCR adjustable speed DC motor control is designed for applications requiring constant (or diminishing) torque. It is designed to operate ONLY one permanent magnet or shunt wound DC motor. Control features include adjustable minimum and maximum speed limits, tachometer feedback, and MOV transient and surge protection.
| Item | DC Speed Control |
| Enclosure | NEMA 1 |
| Max. Amps | 2 A |
| Voltage Output | 0 to 90V DC |
| Speed Range | 1 |
| Rotation | Single Direction |
| External Switches | ON/OFF |
| AC Input Voltage | 120V AC |
| DC Speed Control | SCR |
| HP @ Lower Volts | 1/50 to 1/6 |
| Linear Acceleration | Fixed 0.5 sec |
| Current/Torque Limit | None |
| Speed Regulation | +/-1% of Motor Base Speed |
| Accepts Tach Feedback | No |
| Dynamic Braking | No |
| Power On Light | No |
| IR Compensation | Adjustable |
| Height | 6 in |
| Depth | 6.38 in |
| Width | 6 in |
| Operating Temp. | -10 Degrees to 45 Degrees C |
| For Use With | 90V DC Motors |
| Standards | cULus Listed |
| Includes | Power On/Off toggle switch, and output filter choke, front panel line fuse, speed dial |
