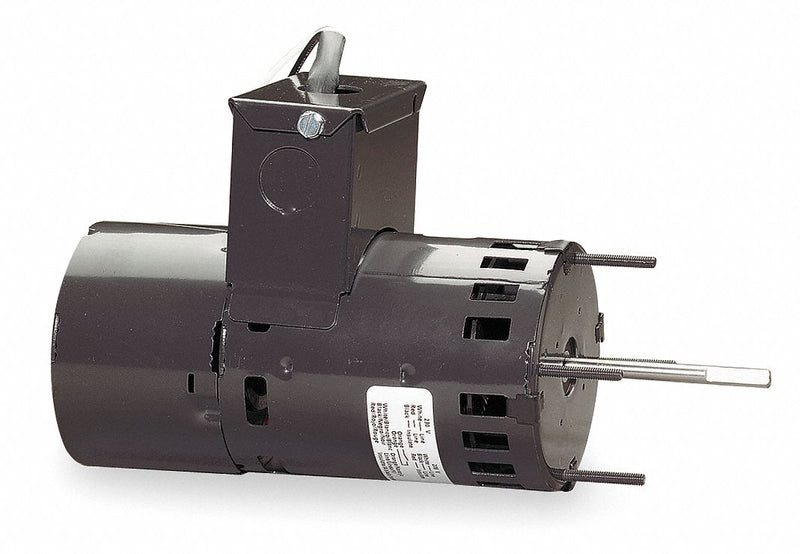

Dayton 1/15 HP Draft Booster Motor, Shaded Pole, 3000 Nameplate RPM, 115/230 Voltage, Frame Non-Standard - 71219124M

DaytonSKU: C1544514
MPN : 71219124M
Weight : 4.85 lb
filler

Price:
$193.63 $236.13

Availability : Usually Ships in 1-3 Business Days

The draft booster motor is required for most gas furnaces and helps to improve energy efficiency.

ItemDraft Booster Motor
Motor DesignShaded Pole
Motor Enclosure DesignOpen Air-Over
DutyContinuous
HP1/15
Nameplate RPM3000
Voltage115/230
FrameNon-Standard
Motor Service Factor1
Full Load Amps2.2/1.1
Phase1
Hz60
Motor Shaft RotationCCWSE
Ins. ClassB
Max. Ambient Temp.40 Degrees C
Motor Mounting TypeStud
Mounting PatternB
Motor BearingsBall
Motor Thermal ProtectionAuto
Body Dia.3.3 in
Shaft Dia.1/4 in
Shaft Length3 3/4 in
Contact Break800 RPM
Contact Make2,500 RPM
IncludesCentrifugal Safety Switch
StandardsUL Recognized and CSA Certified
Voltage Compatibility115, 115/230, 120, 120/240, 230, 240
