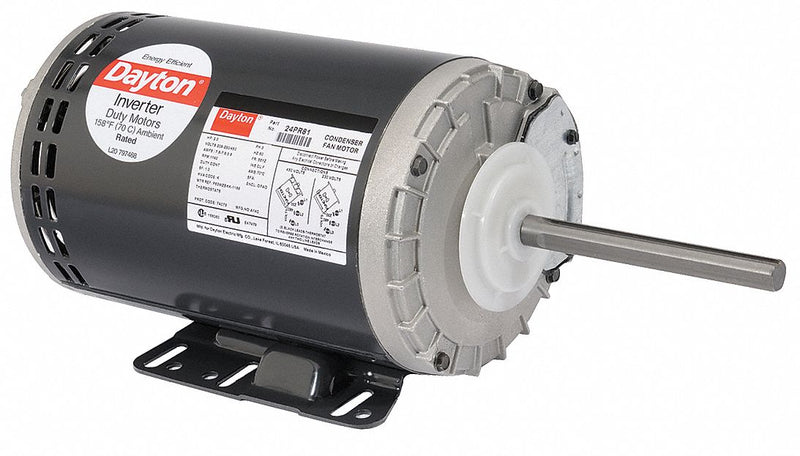

This 3-phase condenser fan motor features an open air-over enclosure design. It can operate with horizontal or shaft-up shaft orientation. Use to operate condenser fans in refrigeration or air conditioning equipment.
| Item | Condenser Fan Motor |
| Motor Design | 3-Phase |
| Phase | 3 |
| HP | 2 |
| No. of Speeds | 1 |
| Voltage | 208-230/460 |
| Motor Shaft Rotation | CW/CCW |
| Frame | 56HZ |
| Motor Enclosure Design | Open Air-Over |
| Motor Mounting Type | Rigid Base |
| Motor Mounting Position | Horizontal or Vertical Shaft Up |
| Shaft Dia. | 5/8 in |
| Shaft Length | 6 in |
| Motor Thermal Protection | Auto |
| Max. Ambient Temp. | 60 Degrees C |
| Nameplate RPM | 1140 |
| Motor Application | HVAC/R |
| Motor Sub Application | Condenser Fan |
| Hz | 60 |
| Full Load Amps | 7.6-7.4/3.7 |
| Ins. Class | F |
| Motor Service Factor | 1 |
| Motor Bearings | Ball |
| Overall Length | 17 1/4 in |
| Length Less Shaft | 11 1/4 in |
| Body Dia. | 6 1/2 in |
| Bolt Circle Dia. | 5 7/8 in |
| Stud Quantity | 4 |
| Mounting Stud Pattern | 4-1/8 in x 4-1/8 in |
| Stud Size | 10-32 |
| Nominal Efficiency | 85.5 % |
| Lead Length | 6 in |
| Motor Shaft Design | Flat |
| Features | Inverter Duty |
| Duty | Continuous |
| Capacitor Required | No |
| Application | Condenser Fan |
| Standards | CSA 258525, UL E47479 |
