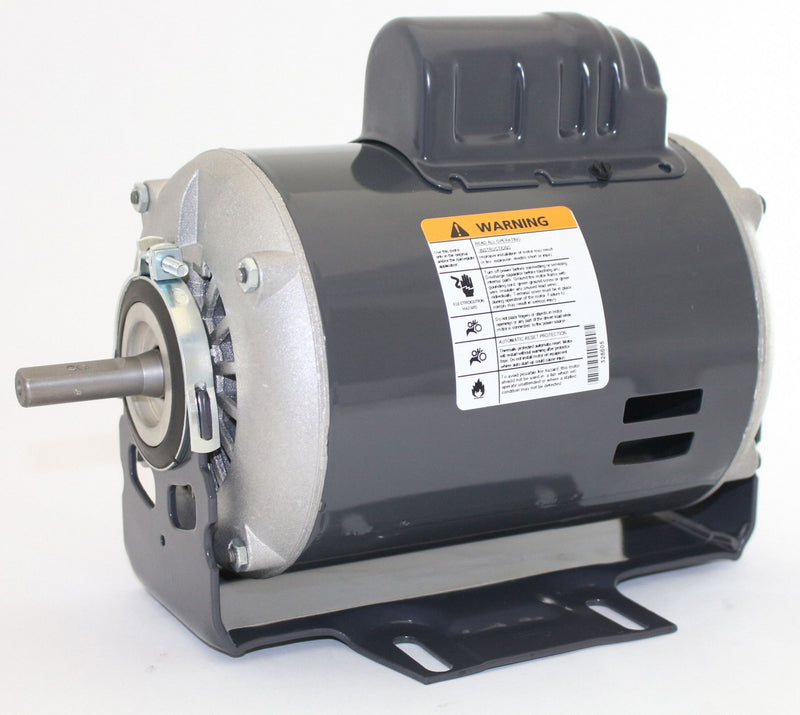

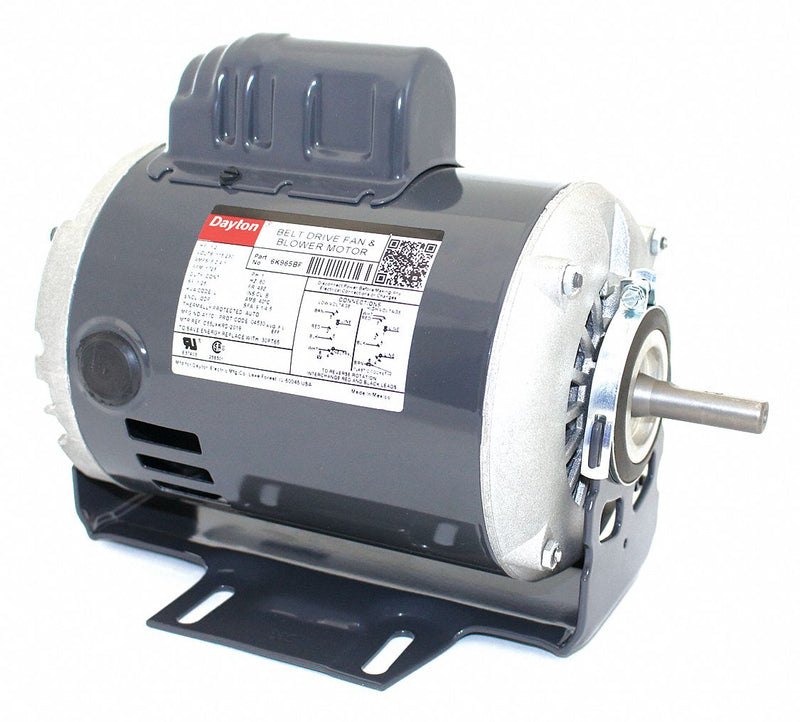

Use this motor with belt-drive applications, including furnace blowers, exhaust fans, industrial blowers, and ventilators.
| Item | Belt Drive Motor |
| Motor Application | HVAC/R |
| Motor Sub Application | Belt Drive Fan/Blower |
| Motor Design | Capacitor-Start |
| HP | 1/2 |
| No. of Speeds | 1 |
| Nameplate RPM | 1725 |
| Voltage | 115/230 |
| Frame | 48Z |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Type | Cradle Base |
| Motor Mounting Position | All Angle |
| Hz | 60 |
| Full Load Amps | 8.2/4.1 |
| Motor Thermal Protection | Auto |
| Ins. Class | B |
| Motor Service Factor | 1.25 |
| Motor Bearings | Ball |
| Motor Frame Material | Rolled Steel |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Motor Shaft Design | Flat |
| Shaft Dia. | 1/2 in |
| Shaft Length | 1 7/8 in |
| Length Less Shaft | 8 5/8 in |
| Overall Length | 10 5/16 in |
| Body Dia. | 5 5/8 in |
| Duty | Continuous |
| Phase | 1 |
| Manufacturers Warranty Length | 1 yr |
| Standards | CSA Certified, UL Recognized |
| Voltage Compatibility | 115, 115/230, 120, 120/240, 230, 240 |
