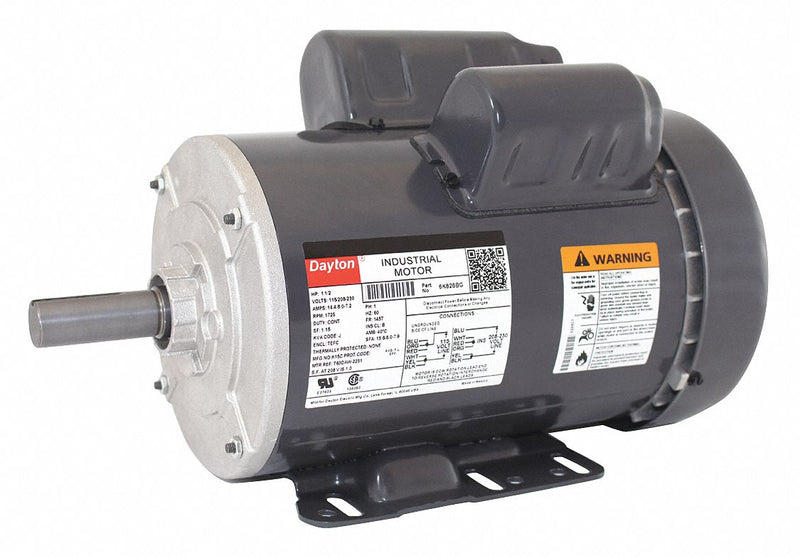

Dayton 1 1/2 HP, General Purpose Motor, Capacitor-Start/Run, 1725 Nameplate RPM, 115/208-230 Voltage - 6K828

DaytonSKU: C1566652
MPN : 6K828
Weight : 46.0 lb

filler

Price:
$747.75 $1,206.04

Availability : Usually Ships in 3 Business Days

Capacitor-Start Base-Mount Motors,Max. ambient: 40C Rotation: CW/CCW Bearing: ball,UL Recognized and CSA Certified.,Totally Enclosed Fan-Cooled Motors,For use in dirty, dusty, and nonhazardous environments. Can be used in place of open dripproof motors.

ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor DesignCapacitor-Start/Run
Motor Enclosure DesignTotally Enclosed Fan-Cooled
HP1 1/2
Nameplate RPM1725
Frame145T
Voltage115/208-230
Hz60
Phase1
Full Load Amps14.4/8-7.2
No. of Speeds1
Motor Mounting TypeRigid Base
Motor Mounting PositionHorizontal
Motor Thermal ProtectionNone
Ins. ClassB
Motor Service Factor1.15
Motor BearingsBall
Motor Frame MaterialSteel
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.7/8 in
Shaft Length2 1/4 in
Length Less Shaft11 9/16 in
Overall Length14 1/4 in
Motor Shaft DesignKeyed
StandardsCSA (225293), UL (E47479)
DutyContinuous
Motor Efficiency GroupEnergy Efficient
Nominal Efficiency80.9 %
Manufacturers Warranty Length1 yr
