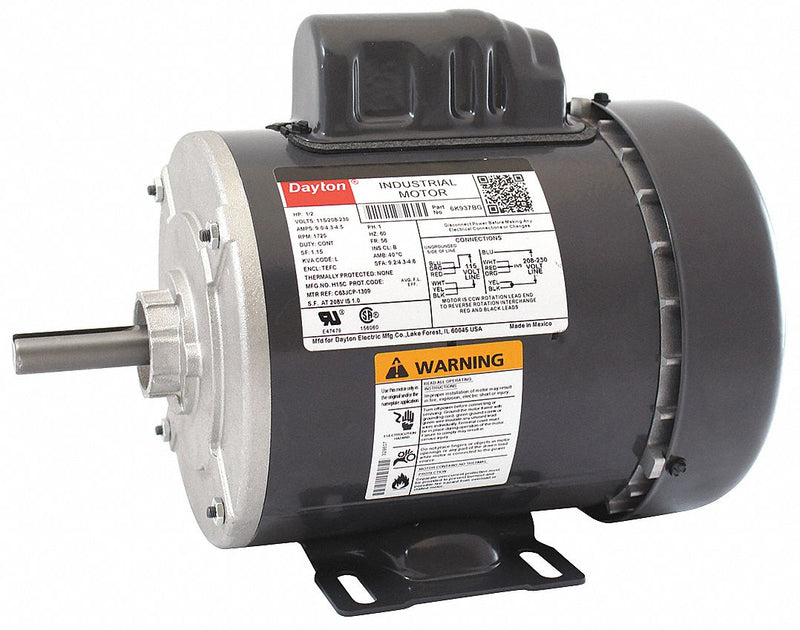

General-purpose motor provides the power to start and run equipment with heavy loads. Totally enclosed design helps deliver optimum performance in dusty, dirty, nonhazardous applications. For continuous duty. Can be used in place of open dripproof motors.
| Item | General Purpose Motor |
| Motor Application | General Application |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| HP | 1/2 |
| Nameplate RPM | 1725 |
| Frame | 56 |
| Voltage | 115/208-230 |
| Hz | 60 |
| Phase | 1 |
| Full Load Amps | 9/4.3-4.5 |
| No. of Speeds | 1 |
| Motor Mounting Type | Rigid Base |
| Motor Mounting Position | All Angle |
| Motor Thermal Protection | None |
| Ins. Class | B |
| Motor Service Factor | 1.15 |
| Motor Bearings | Ball |
| Motor Frame Material | Steel |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 7/8 in |
| Length Less Shaft | 9 1/2 in |
| Overall Length | 11 3/8 in |
| Motor Shaft Design | Keyed |
| Standards | UL, CSA |
| Duty | Continuous |
| Motor Efficiency Group | Standard Efficient |
| Nominal Efficiency | 64.3 % |
| Manufacturers Warranty Length | 1 yr |
