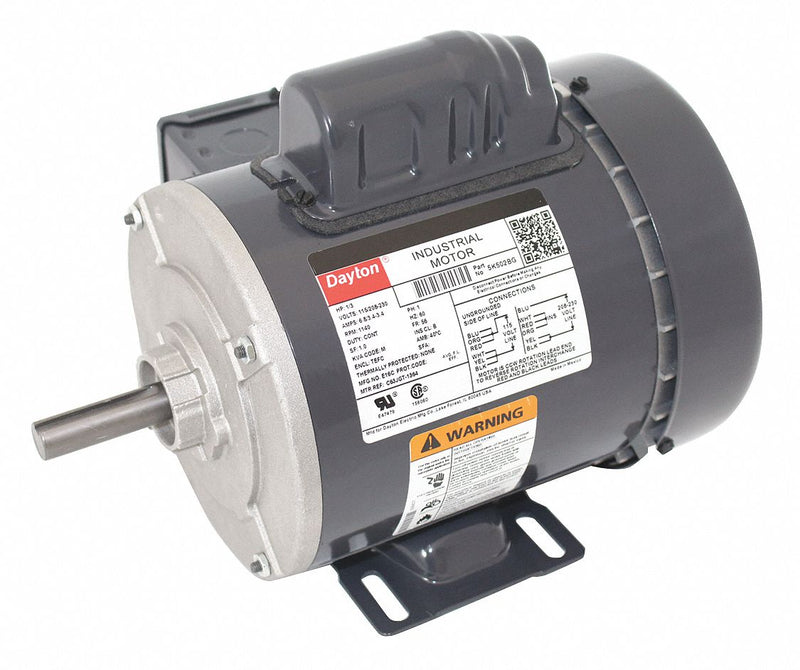

Dayton 1/3 HP, General Purpose Motor, Capacitor-Start, 1140 Nameplate RPM, 115/208-230 Voltage - 5K502BG

DaytonSKU: C1563842
MPN : 5K502BG
Weight : 32.0 lb

filler

Price:
$624.95 $1,007.98

Availability : Usually Ships in 12-15 Business Days

Capacitor-Start Base-Mount Motors,Max. ambient: 40C Rotation: CW/CCW Bearing: ball,UL Recognized and CSA Certified.,Totally Enclosed Fan-Cooled Motors,For use in dirty, dusty, and nonhazardous environments. Can be used in place of open dripproof motors.

ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor DesignCapacitor-Start
Motor Enclosure DesignTotally Enclosed Fan-Cooled
HP1/3
Nameplate RPM1140
Frame56
Voltage115/208-230
Hz60
Phase1
Full Load Amps6.8/3.4-3.4
No. of Speeds1
Motor Mounting TypeRigid Base
Motor Mounting PositionAll Angle
Motor Thermal ProtectionNone
Ins. ClassB
Motor Service Factor1
Motor BearingsBall
Motor Frame MaterialSteel
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.5/8 in
Shaft Length1 7/8 in
Length Less Shaft9 5/8 in
Overall Length11 3/8 in
Motor Shaft DesignKeyed
StandardsCSA Certified (258501), UL Recognized (E47479)
DutyContinuous
Motor Efficiency GroupStandard Efficient
Nominal Efficiency59.4 %
IncludesConduit Box, Shaft Key
Manufacturers Warranty Length1 yr
