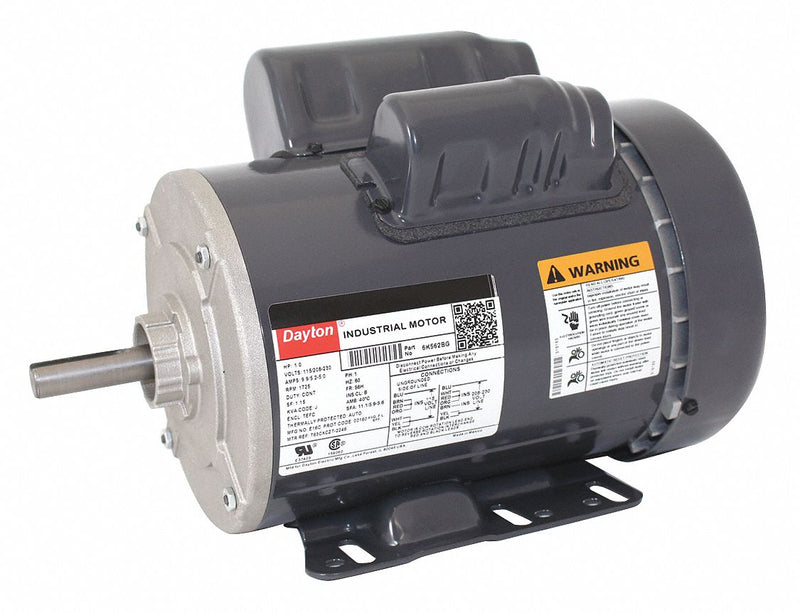

Dayton 1 HP, General Purpose Motor, Capacitor-Start/Run, 1725 Nameplate RPM, 115/208-230 Voltage - 6K562BG

DaytonSKU: C1566626
MPN : 6K562BG
Weight : 32.0 lb


$585.63 $944.57

Availability : Usually Ships in 12-15 Business Days

General-purpose motor provides the power to start and run equipment with heavy loads. Totally enclosed design helps deliver optimum performance in dusty, dirty, nonhazardous applications. For continuous duty. Can be used in place of open dripproof motors.

ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor DesignCapacitor-Start/Run
Motor Enclosure DesignTotally Enclosed Fan-Cooled
Nameplate RPM1725
Full Load Amps9.9/5.2-5
No. of Speeds1
Motor Mounting TypeRigid Base
Motor Mounting PositionAll Angle
Motor Thermal ProtectionAuto
Ins. ClassB
Motor Service Factor1.15
Motor BearingsBall
Motor Frame MaterialRolled Steel
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.5/8 in
Shaft Length1 7/8 in
Length Less Shaft11 1/16 in
Overall Length12 15/16 in
Motor Shaft DesignKeyed
StandardsUL Recognized (E37403), CSA Certified (258501)
Motor Efficiency GroupEnergy Efficient
Nominal Efficiency77.7 %
IncludesConduit Box, Shaft Key
Manufacturers Warranty Length1 yr
