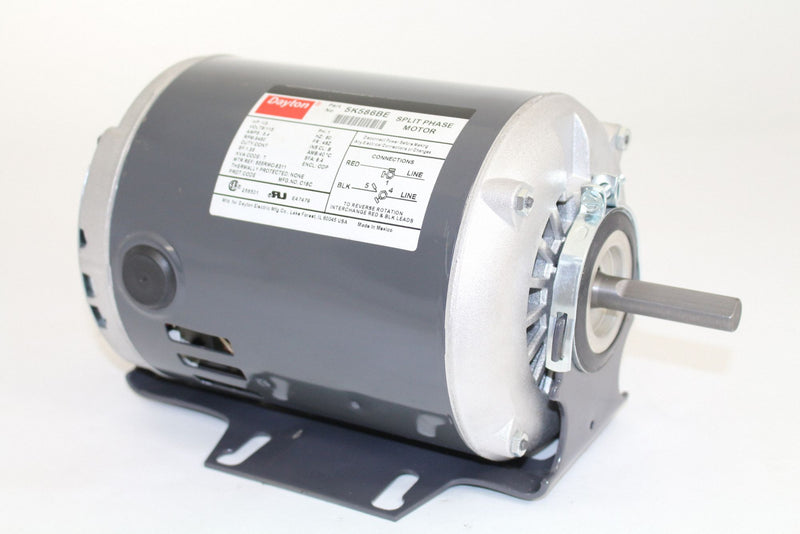

Use this motor in clean, dry, and nonhazardous applications, including fans, blowers, pumps, printing equipment, and other business machines.
| Item | General Purpose Motor |
| Motor Application | General Application |
| Motor Design | Split-Phase |
| Motor Enclosure Design | Open Dripproof |
| HP | 1/3 |
| Nameplate RPM | 3450 |
| Frame | 48Z |
| Voltage | 115 |
| Hz | 60 |
| Phase | 1 |
| Full Load Amps | 5.4 |
| No. of Speeds | 1 |
| Motor Mounting Type | Cradle Base |
| Motor Thermal Protection | None |
| Ins. Class | B |
| Motor Service Factor | 1.35 |
| Motor Bearings | Ball |
| Motor Frame Material | Rolled Steel |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Shaft Dia. | 1/2 in |
| Shaft Length | 1 7/8 in |
| Length Less Shaft | 8 7/16 in |
| Overall Length | 10 5/16 in |
| Motor Shaft Design | Flat |
| Standards | CSA (156060), UL (E47479) |
| Duty | Continuous |
| Motor Efficiency Group | Standard Efficient |
| Nominal Efficiency | 53.3 % |
| Manufacturers Warranty Length | 1 yr |
