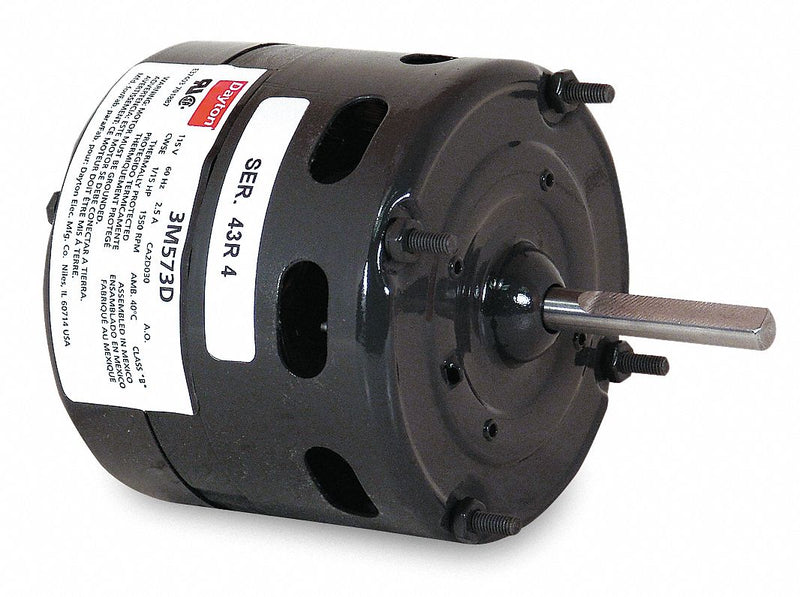

Sturdy, steel-shell motor has an open lamination design and can be used as a new or replacement motor in a wide range of small fan and blower applications.
| Item | HVAC Motor |
| Motor Application | HVAC/R |
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Design | Shaded Pole |
| Motor Enclosure Design | Open |
| HP | 1/10 |
| Nameplate RPM | 1550 |
| No. of Speeds | 1 |
| Frame | 4.4 |
| Voltage | 115 |
| Hz | 60 |
| Phase | 1 |
| Full Load Amps | 3.3 |
| Motor Mounting Type | Stud |
| Motor Thermal Protection | Auto |
| Ins. Class | B |
| Motor Service Factor | 1 |
| Motor Bearings | Sleeve |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CWSE |
| Length Less Shaft | 5 3/8 in |
| Shaft Dia. | 3/8 in |
| Shaft Length | 2 in |
| Body Dia. | 4.4 in |
| Stud/Base Mtg. Pattern | 2-3/4 in x 2-3/4 in |
| Duty | Continuous |
| Standards | CSA Certified (701887), UL Recognized (E37403) |
| Includes | 5 cu in Junction Box |
| Voltage Compatibility | 115, 115/208-230, 115/230, 120, 120/240 |
