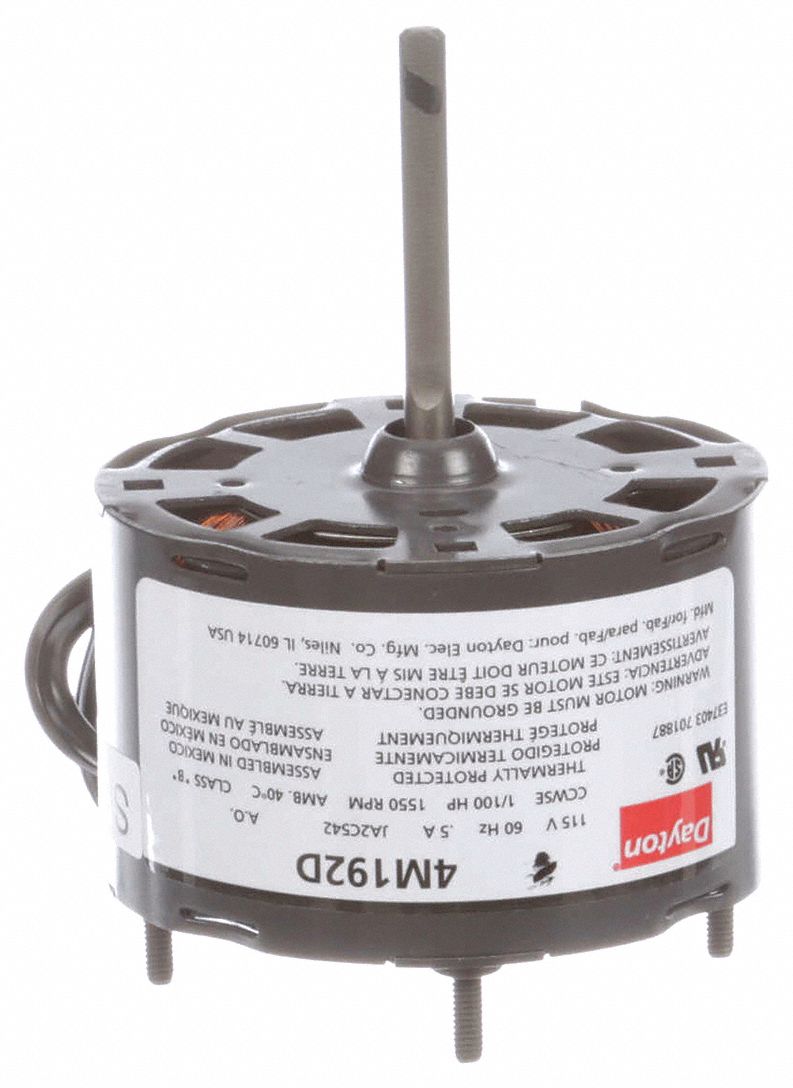

With continuous air-over, this motor replaces 1/50 HP PSC and less-efficient shaded pole motors in HVAC/R Applications.
| Item | HVAC Motor |
| Motor Design | Shaded Pole |
| HP | 1/100 |
| No. of Speeds | 1 |
| Voltage | 115 |
| Motor Shaft Rotation | CCWSE |
| Motor Enclosure Design | Open Air-Over |
| Motor Mounting Type | Stud |
| Shaft Dia. | 1/4 in |
| Shaft Length | 2 1/4 in |
| Number of Shafts | 1 |
| Motor Thermal Protection | Auto |
| Nameplate RPM | 1550 |
| Phase | 1 |
| Motor Application | HVAC/R |
| Motor Sub Application | Direct Drive Fan/Blower |
| Frame | 3.3 |
| Motor Bearings | Sleeve |
| Full Load Amps | 0.65 |
| Duty | Continuous |
| Footnotes | 1-Phase Input Drive |
| Motor Service Factor | 1 |
| Hz | 60 |
| Body Dia. | 3.3 in |
| Ins. Class | B |
| Max. Ambient Temp. | 40 Degrees C |
| Length Less Shaft | 2 5/8 in |
| Mounting Stud Location | 4/Opposite Shaft End |
| Stud/Base Mtg. Pattern | 2 in x 2 in |
| Motor Shaft Design | Flat |
| Application | OEM and Replacement Use In A Wide Variety of Fan and Blower |
| Cord Length | 10 in |
| Plug Type | 2 Prong Non-Polarized |
| Includes | 8-1/2 in Cordset |
| Mounting Pattern | 2 x 2 |
