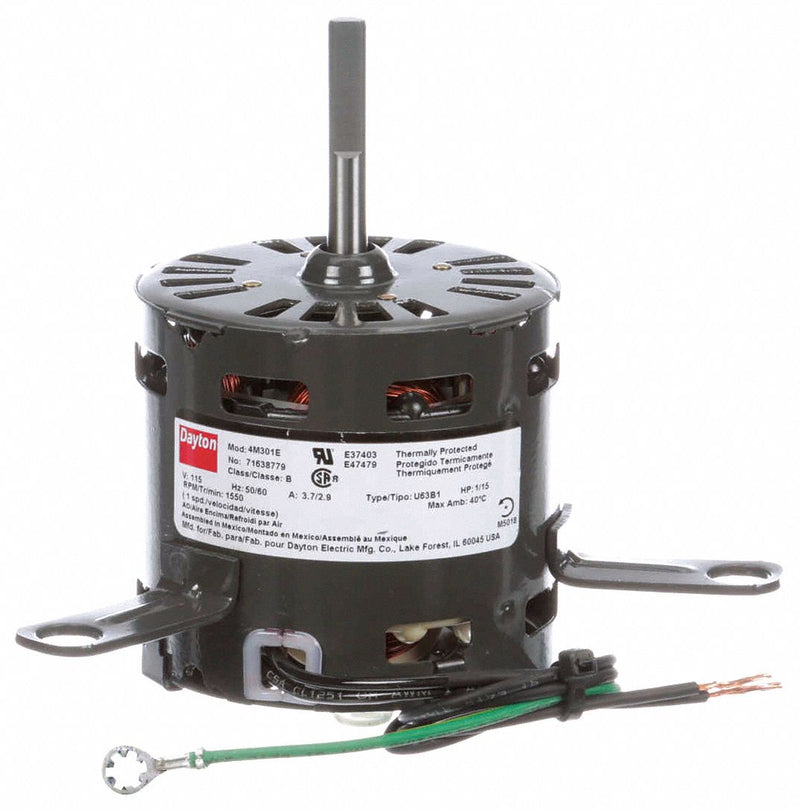

With continuous air-over, this motor replaces 1/50 HP PSC and less-efficient shaded pole motors in HVAC/R applications.
| Item | HVAC Motor |
| Motor Design | Shaded Pole |
| HP | 1/15 |
| No. of Speeds | 1 |
| Voltage | 115 |
| Motor Shaft Rotation | CCWSE |
| Motor Enclosure Design | Open Air-Over |
| Motor Mounting Type | Lug |
| Shaft Dia. | 5/16 in |
| Shaft Length | 2 in |
| Number of Shafts | 1 |
| Motor Thermal Protection | Auto |
| Nameplate RPM | 1550 |
| Phase | 1 |
| Motor Application | HVAC/R |
| Motor Sub Application | Direct Drive Fan/Blower |
| Frame | 3.3 |
| Motor Bearings | Sleeve |
| Full Load Amps | 2.5 |
| Duty | Continuous |
| Footnotes | 6 |
| Motor Service Factor | 1 |
| Hz | 60/50 |
| Body Dia. | 3.3 in |
| Ins. Class | B |
| Max. Ambient Temp. | 40 Degrees C |
| Length Less Shaft | 3 in |
| Stud/Base Mtg. Pattern | 6-1/8 in |
| Motor Shaft Design | Flat |
| Application | OEM and Replacement Use In A Wide Variety of Fan and Blower |
| Cord Length | 12 in |
| Standards | UL Recognized; CSA Certified |
