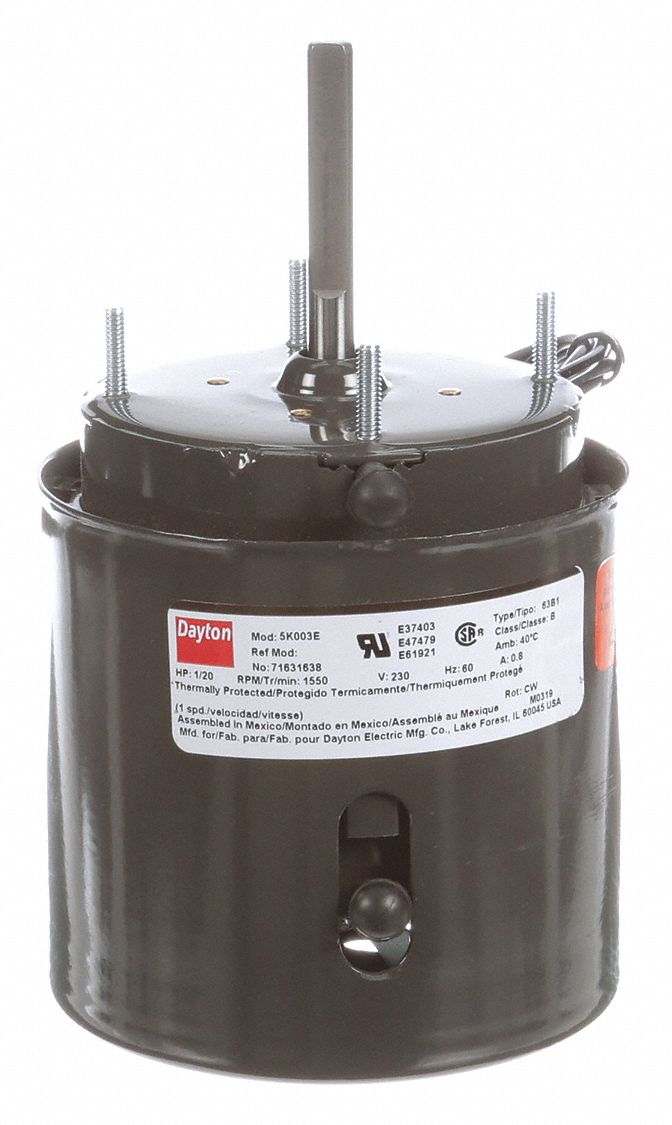

An internal fan makes this motor suitable for mechanical-duty applications such as pumps, diaphragm compressors, laboratory equipment, and business machines. Featuring all-steel construction, it is also suitable for OEM and replacement use in a wide variety of fan and blower applications. The stator is press-fit into a sturdy sleeve, and the bearings are surrounded by Permawick lubrication.
| Item | HVAC Motor |
| Motor Design | Shaded Pole |
| HP | 1/20 |
| No. of Speeds | 1 |
| Voltage | 230 |
| Motor Shaft Rotation | CWSE |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| Motor Mounting Type | Stud |
| Shaft Dia. | 5/16 in |
| Shaft Length | 2 1/4 in |
| Number of Shafts | 1 |
| Motor Thermal Protection | Auto |
| Nameplate RPM | 1550 |
| Phase | 1 |
| Motor Application | HVAC/R |
| Motor Sub Application | Direct Drive Fan/Blower |
| Frame | 3.3 |
| Motor Bearings | Sleeve |
| Full Load Amps | 0.9 |
| Duty | Continuous |
| Motor Service Factor | 1 |
| Hz | 60 |
| Body Dia. | 4 in |
| Ins. Class | B |
| Max. Ambient Temp. | 40 Degrees C |
| Length Less Shaft | 4 1/4 in |
| Mounting Stud Location | 4/Shaft End |
| Stud/Base Mtg. Pattern | 2 in x 2 in |
| Motor Shaft Design | Flat |
| Application | OEM and Replacement Use In A Wide Variety of Fan and Blower |
| Cord Length | 12 in |
| Standards | UL Recognized; CSA Certified |
| Mounting Pattern | 2 x 2 |
