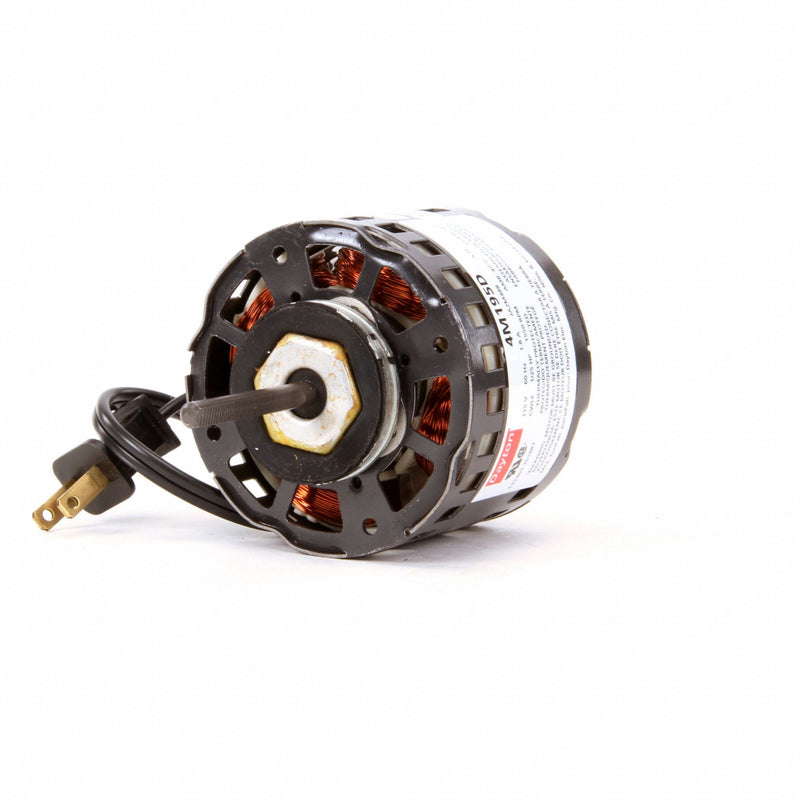

Motor is for OEM replacement use in air-over fan and blower applications such as bathroom fans and range hoods. UL recognized and CSA certified.
| Item | HVAC Motor |
| Motor Design | Shaded Pole |
| HP | 1/25 |
| No. of Speeds | 1 |
| Voltage | 115 |
| Motor Shaft Rotation | CWLE |
| Motor Enclosure Design | Open Air-Over |
| Motor Mounting Type | Ring |
| Shaft Dia. | 1/4 in |
| Shaft Length | (2 ) 2 3/8 in |
| Number of Shafts | 2 |
| Motor Thermal Protection | Auto |
| Nameplate RPM | 1550 |
| Phase | 1 |
| Motor Application | HVAC/R |
| Motor Sub Application | Direct Drive Fan/Blower |
| Frame | 3.3 |
| Motor Bearings | Sleeve |
| Full Load Amps | 1.8 |
| Duty | Continuous |
| Footnotes | 18, 3 |
| Motor Service Factor | 1 |
| Hz | 60 |
| Body Dia. | 3.3 in |
| Ins. Class | B |
| Max. Ambient Temp. | 40 Degrees C |
| Length Less Shaft | 4 15/16 in |
| Mounting Stud Location | Both Ends |
| Motor Shaft Design | Flat |
| Application | OEM and Replacement Use In A Wide Variety of Fan and Blower |
| Cord Length | 10 in |
| Plug Type | 2 Prong Non-Polarized |
| Includes | 8-1/2 in Cordset, Double Shaft Motor |
| Standards | UL Recognized; CSA Certified |
| Mounting Pattern | 5 |
