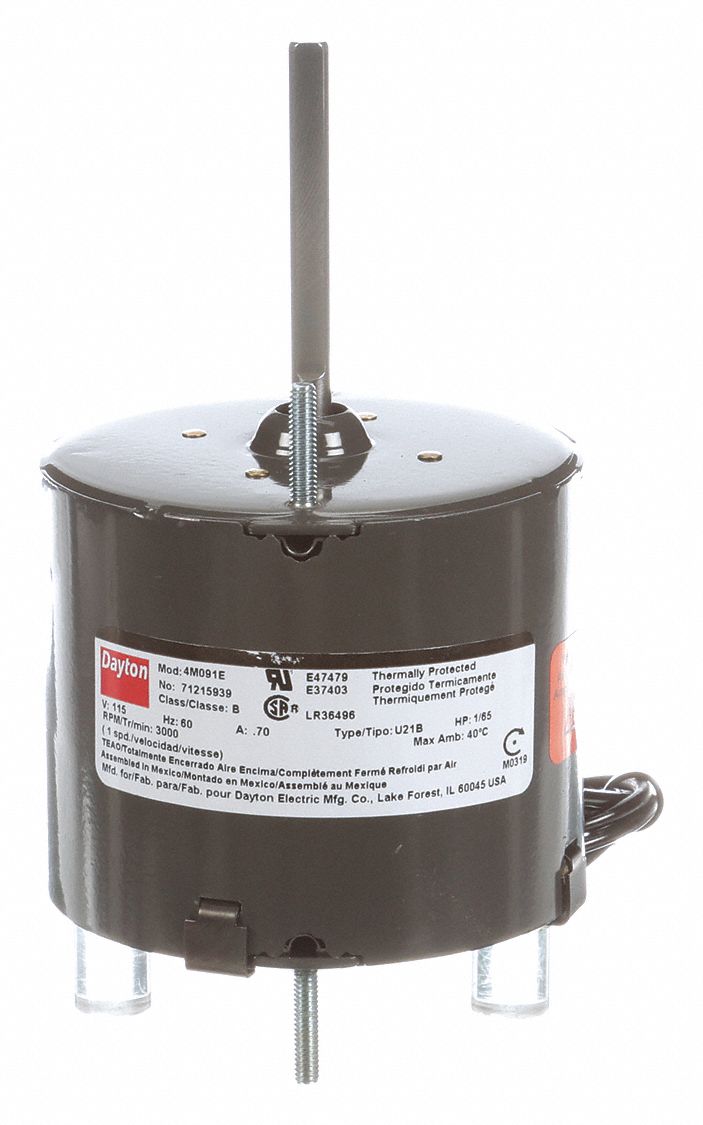

Motor is for OEM replacement use in air-over fan and blower applications such as bathroom fans and range hoods. UL recognized and CSA certified.
| Item | HVAC Motor |
| Motor Design | Shaded Pole |
| HP | 1/65 |
| No. of Speeds | 1 |
| Voltage | 115 |
| Motor Shaft Rotation | CWSE |
| Motor Enclosure Design | Totally Enclosed Air-Over |
| Motor Mounting Type | Stud |
| Shaft Dia. | 1/4 in |
| Shaft Length | 2 1/2 in |
| Number of Shafts | 1 |
| Motor Thermal Protection | Auto |
| Nameplate RPM | 3000 |
| Phase | 1 |
| Motor Application | HVAC/R |
| Motor Sub Application | Direct Drive Fan/Blower |
| Frame | 3.3 |
| Motor Bearings | Sleeve |
| Full Load Amps | 0.7 |
| Duty | Continuous |
| Motor Service Factor | 1 |
| Hz | 60 |
| Body Dia. | 3.3 in |
| Ins. Class | B |
| Max. Ambient Temp. | 40 Degrees C |
| Length Less Shaft | 3 3/8 in |
| Mounting Stud Location | 2/Both Ends |
| Stud/Base Mtg. Pattern | 2-7/8 in |
| Motor Shaft Design | Flat |
| Application | OEM and Replacement Use In A Wide Variety of Fan and Blower |
| Cord Length | 12 in |
| Mounting Pattern | 2-7/8 |
