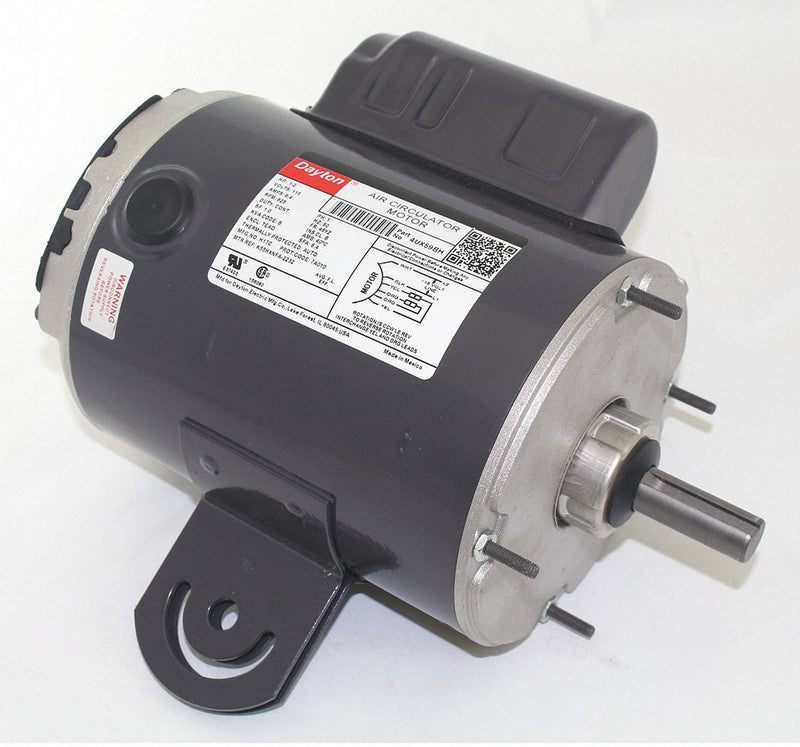

Dayton 1/2 HP Pedestal Fan Motor, Permanent Split Capacitor, 825 Nameplate RPM,115 Voltage, Frame 48YZ - 4UX59

DaytonSKU: C1561949
MPN : 4UX59
Weight : 22.6 lb


$266.44 $324.93

Availability : Usually Ships in 1-3 Business Days

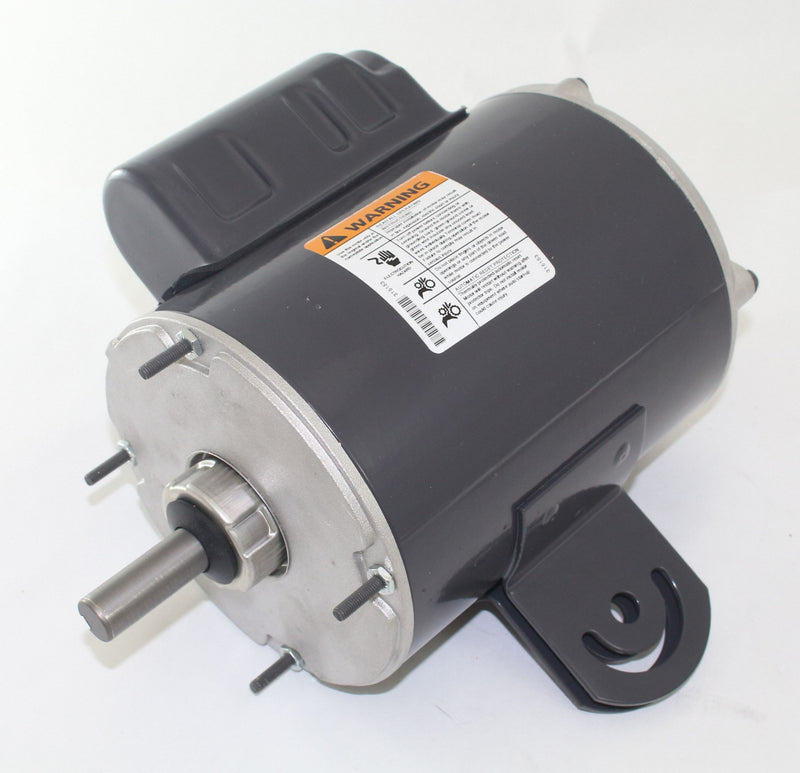

This motor is designed with an integral yoke bracket. The studs allow the fan guard to be mounted directly to the shaft endshield.

ItemPedestal Fan Motor
Motor DesignPermanent Split Capacitor
No. of Speeds1
Motor Shaft RotationCW/CCW
Motor Enclosure DesignTotally Enclosed Air-Over
Motor Mounting TypeYoke
Shaft Dia.5/8 in
Shaft Length1 7/8 in
Motor Thermal ProtectionAuto
10 Ft. Cord and Pull Chain SwitchNo
Nameplate RPM825
Motor ApplicationHVAC/R
Motor Sub ApplicationPedestal Fans
Full Load Amps6.4
Motor Service Factor1
Ambient Temperature40 Degrees C
Max. Ambient Temp.40 Degrees C
Ins. ClassB
Motor BearingsBall
Body Dia.5 5/8 in
Overall Length10 in
Motor Shaft DesignFlat
ApplicationAir Circulators where Motor is Mounted Directly to Fan Column, Also Used on Exhaust Fans, Unit Heaters and Other Air-moving Uses
Capacitor RequiredIncluded
StandardsCSA Certified, UL Recognized
