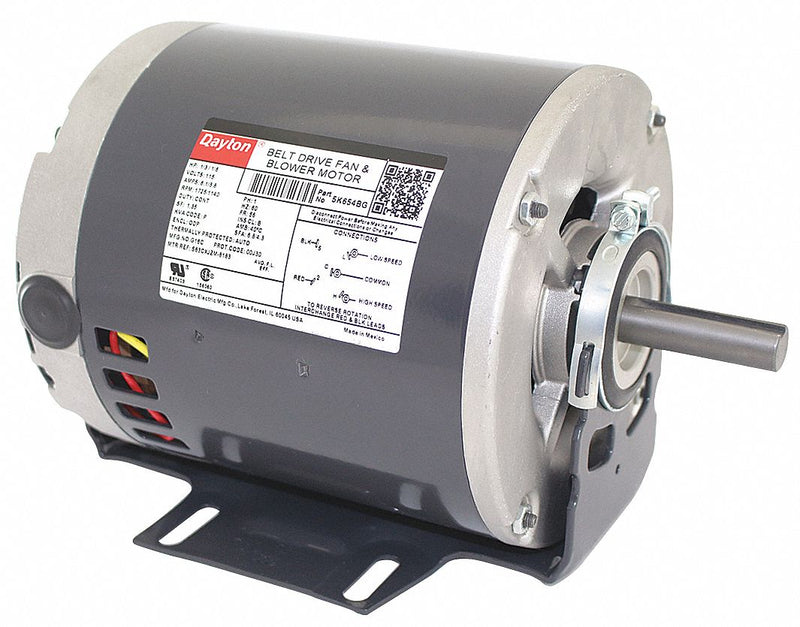

Featuring a quick-connect terminal board, this motor is for use in fans, blowers, whole-house fans, air circulators, and air coolers where a quiet running motor is required.
| Item | Belt Drive Motor |
| Motor Application | HVAC/R |
| Motor Sub Application | Belt Drive Fan/Blower |
| Motor Design | Split-Phase |
| HP | 1/6, 1/3 |
| No. of Speeds | 2 |
| Nameplate RPM | 1725/1140 |
| Voltage | 115 |
| Frame | 56 |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Type | Cradle Base |
| Motor Mounting Position | All Angle |
| Hz | 60 |
| Full Load Amps | 6.1/3.8 |
| Motor Thermal Protection | Auto |
| Ins. Class | B |
| Motor Service Factor | 1.35 |
| Motor Bearings | Ball |
| Motor Frame Material | Steel |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Motor Shaft Design | Keyed |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 7/8 in |
| Length Less Shaft | 8 7/8 in |
| Overall Length | 10 5/16 in |
| Body Dia. | 6 7/16 in |
| Resilient Ring Dia. | 2 1/4 in |
| Ring to Ring Center | 7 15/16 in |
| Nominal Efficiency | 61.4 % |
| Duty | Continuous |
| Phase | 1 |
| Standards | CSA Certified (258501), UL Recognized (E37403) |
| Includes | 3/16 x 3/16 x 1 1/4 in Shaft Key |
| Voltage Compatibility | 115, 120 |
