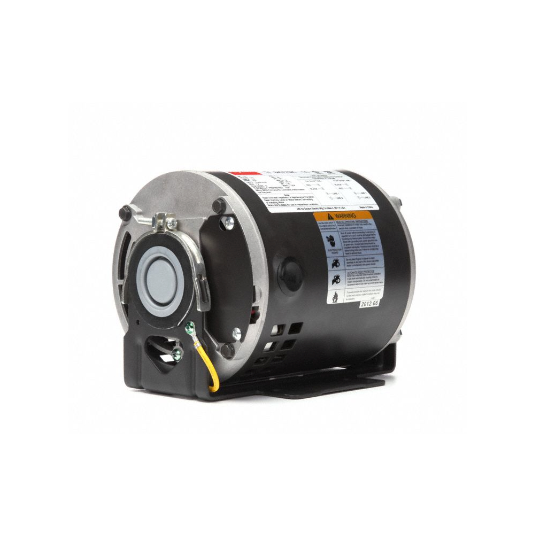

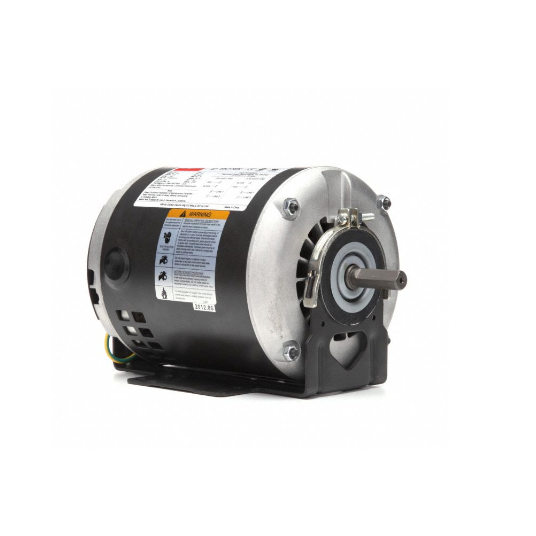

Dayton 1/3 HP Belt Drive Motor, Split-Phase, 1725 Nameplate RPM, 115 Voltage, Frame 48 - 3K384

DaytonSKU: C1557266
MPN : 3K384
Weight : 14.78 lb
filler

Price:
$159.78 $194.85

Availability : Usually Ships in 1-3 Business Days

This motor is for use in fans, blowers, whole-house fans, air circulators, and air coolers where a quiet running motor is required.

ItemBelt Drive Motor
Motor ApplicationHVAC/R
Motor Sub ApplicationBelt Drive Fan/Blower
Motor DesignSplit-Phase
HP1/3
No. of Speeds1
Nameplate RPM1725
Voltage115
Frame48
Motor Enclosure DesignOpen Dripproof
Motor Mounting TypeCradle Base
Motor Mounting PositionAll Angle
Hz60
Full Load Amps5.8
Motor Thermal ProtectionAuto
Ins. ClassF
Motor Service Factor1.35
Motor BearingsBall
Motor Frame MaterialRolled Steel
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Motor Shaft DesignFlat
Shaft Dia.1/2 in
Shaft Length1 1/2 in
Length Less Shaft8 3/8 in
Overall Length9 7/8 in
Body Dia.5 5/8 in
Resilient Ring Dia.2 1/2 in
Ring to Ring Center7 9/16 in
DutyContinuous
Phase1
StandardsUL Recognition (E37403) and CSA Certification
IncludesShaft is on lead end of the motor.
Voltage Compatibility115, 120
