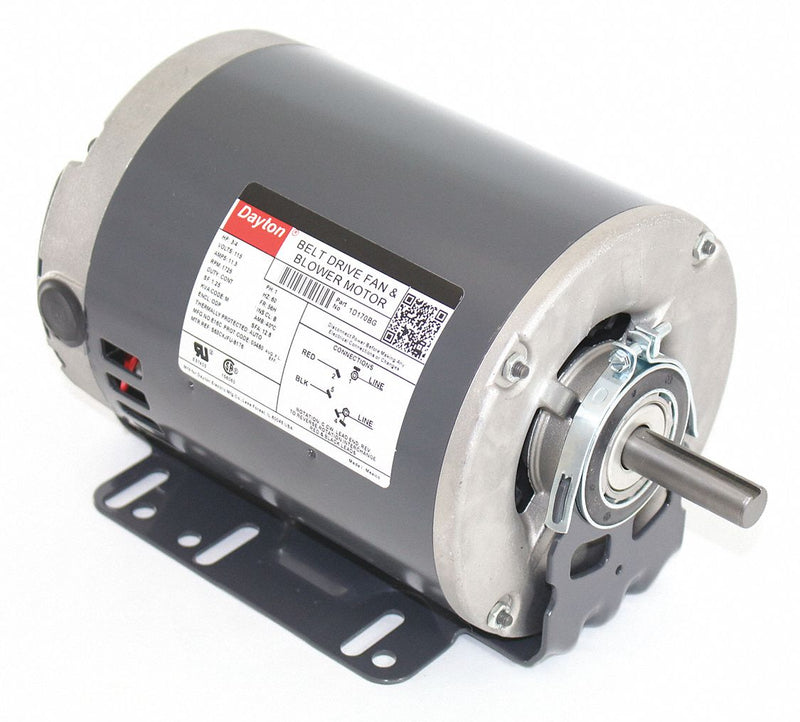

Dayton 3/4 HP Belt Drive Motor, Split-Phase, 1725 Nameplate RPM, 115 Voltage, Frame 56H - 1D170

DaytonSKU: C1544515
MPN : 1D170
Weight : 23.3 lb
filler

Price:
$315.33 $384.55

Availability : Usually Ships in 1-3 Business Days

This motor is for use in fans, blowers, whole-house fans, air circulators, and air coolers where a quiet running motor is required.

ItemBelt Drive Motor
Motor ApplicationHVAC/R
Motor Sub ApplicationBelt Drive Fan/Blower
Motor DesignSplit-Phase
HP3/4
No. of Speeds1
Nameplate RPM1725
Voltage115
Frame56H
Motor Enclosure DesignOpen Dripproof
Motor Mounting TypeCradle Base
Motor Mounting PositionAll Angle
Hz60
Full Load Amps11.3
Motor Thermal ProtectionAuto
Ins. ClassB
Motor Service Factor1.25
Motor BearingsBall
Motor Frame MaterialRolled Steel
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Motor Shaft DesignKeyed
Shaft Dia.5/8 in
Shaft Length1 7/8 in
Length Less Shaft9 7/16 in
Overall Length11 5/16 in
Body Dia.6 3/8 in
Resilient Ring Dia.2 1/4 in
Ring to Ring Center8 15/16 in
Nominal Efficiency60.3 %
DutyContinuous
Phase1
StandardsUL Component Recognition (E37403) and CSA Certification (258501)
IncludesShaft Key
Voltage Compatibility115, 120
