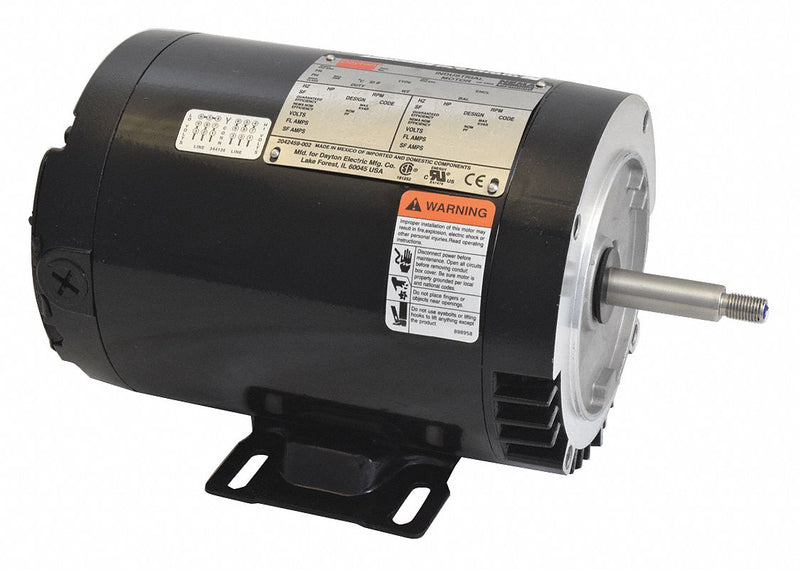

This durable DAYTON jet pump motor is suitable for use in industrial, commercial, centrifugal, and hydraulic pumps. Model comes with a shaft slinger and a gasketed conduit box to help protect motor against moisture and contamination.
| Item | Jet Pump Motor |
| Motor Application | Pump |
| Motor Sub Application | Jet Pump |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
| HP | 3/4 |
| Nameplate RPM | 3530/2910 |
| Frame | 56J |
| Motor Shaft Rotation | CW/CCW |
| Voltage | 208-230/460 |
| Full Load Amps | 2.3-2.2/1.1 |
| Phase | 3 |
| Hz | 60/50 |
| Motor Mounting Type | Face/Base |
| Motor Mounting Position | Horizontal or Vertical Shaft Down |
| Motor Bearings | Ball |
| Motor Thermal Protection | None |
| Motor Service Factor | 1.15 |
| Max. Ambient Temp. | 40 Degrees C |
| Shaft Dia. | 5/8 in |
| Shaft Length | 2 9/16 in |
| Motor Shaft Design | Threaded |
| Body Dia. | 6 1/2 in |
| Ins. Class | B |
| Motor Efficiency Group | NEMA Premium Efficient |
| Nominal Efficiency | 80 % |
| CC Number | CC030A |
| Standards | CSA Certified (258525), UL Recognized (E47479) |
| Voltage Compatibility | 208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 230/460, 240, 460 |
