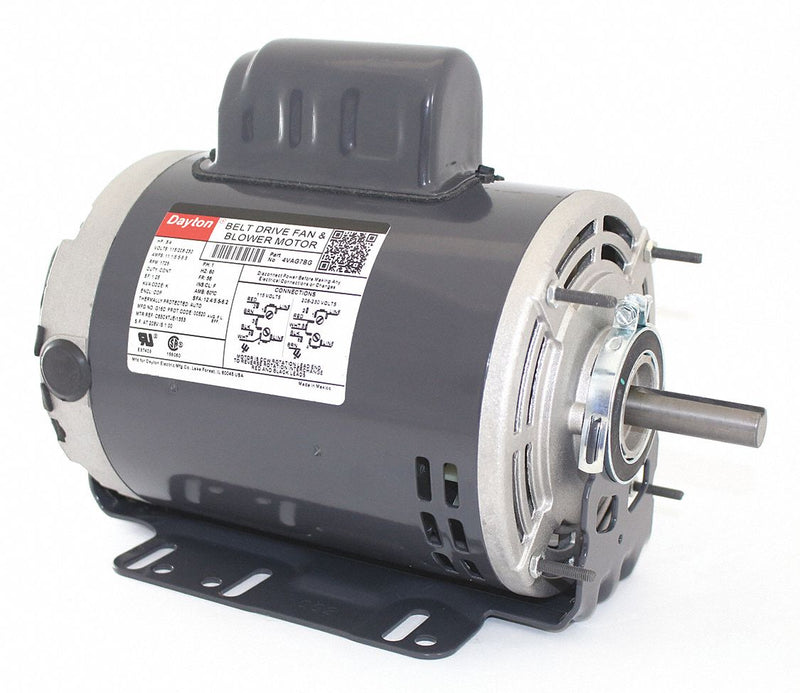

Designed for use in roof ventilators, this single-speed, 1-phase, continuous-duty with quick-connect terminals.
| Item | Belt Drive Motor |
| Motor Application | HVAC/R |
| Motor Sub Application | Belt Drive Fan/Blower |
| Motor Design | Capacitor-Start |
| HP | 3/4 |
| No. of Speeds | 1 |
| Nameplate RPM | 1725 |
| Voltage | 115/208-230 |
| Frame | 56 |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Type | Cradle Base |
| Motor Mounting Position | All Angle |
| Hz | 60 |
| Full Load Amps | 11.1/5.5-5.5 |
| Motor Thermal Protection | Auto |
| Ins. Class | F |
| Motor Service Factor | 1.25 |
| Motor Bearings | Ball |
| Motor Frame Material | Rolled Steel |
| Max. Ambient Temp. | 60 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Motor Shaft Design | Keyed |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 7/8 in |
| Length Less Shaft | 9 1/2 in |
| Overall Length | 11 3/8 in |
| Body Dia. | 6 1/2 in |
| Mounting Stud Pattern | 4-1/4 in x 4-1/4 in |
| Resilient Ring Dia. | 2 1/2 in |
| Ring to Ring Center | 9 in |
| Nominal Efficiency | 72 % |
| Duty | Continuous |
| Phase | 1 |
| Standards | CSA Certified (225293), UL Recognized (E47479) |
| Voltage Compatibility | 115, 115/208-230, 115/230, 120, 120/240, 208, 208-230, 208-240, 230, 240 |
