Availability : Usually Ships in 7 Business Days

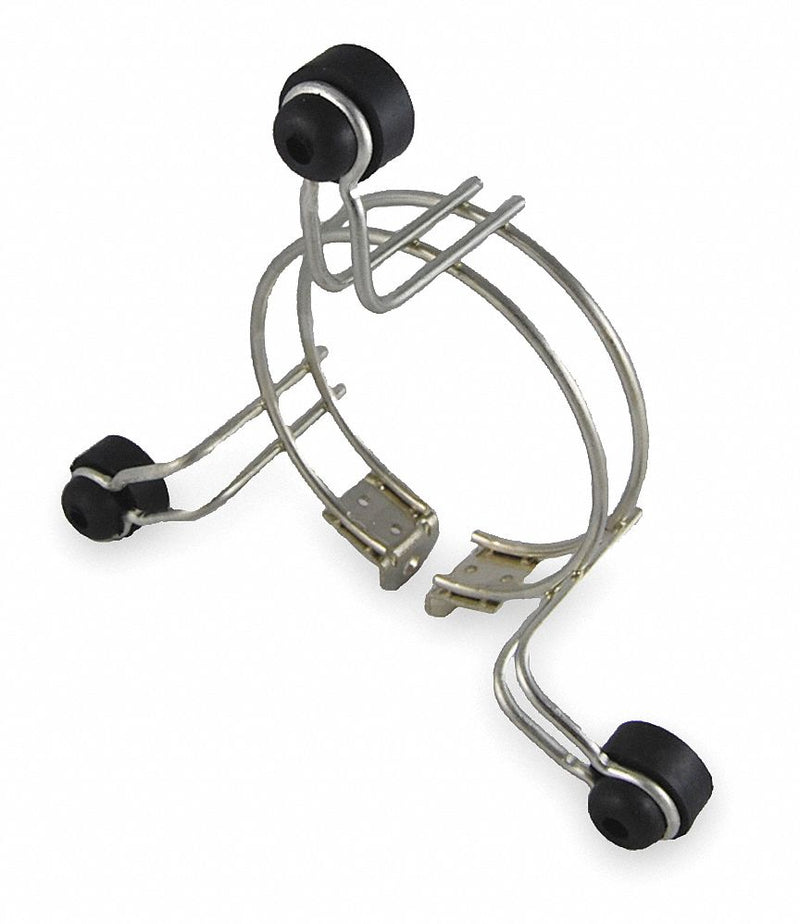

Welded 3-Ring brackets includes an adjustable motor bracket with welded rings and 3 rubber grommets for mounting to blower housing.
Item | Motor Mounting Bracket |
Bracket Type | Welded 3-Ring |
For NEMA Frame | 42 |
For Use With | 4 7/8 thru 5 1/16 in Diameter Motors |
Application | Mounts Motor to Blower Housing |
Fits Blower Wheel Dia. (In.) | 5 |
Dia. | 9 in |
Construction | Anodized Steel Rod |
Includes | 1 Bolt, 1 Nut, 3 Galvanized Steel Sleeves, 3 Sets of Rubber Grommets, 3 Sheet Metal Screws |
