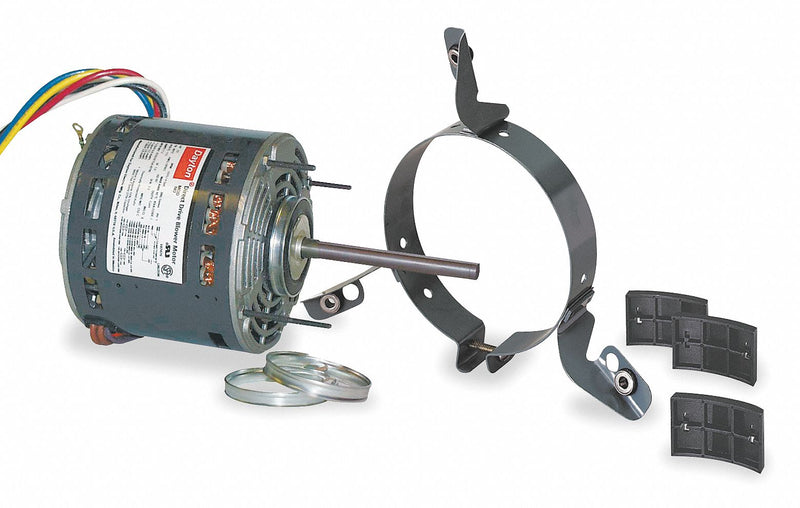

Dayton 1/2 HP Direct Drive Blower Motor, Permanent Split Capacitor, 1075 Nameplate RPM, 115 Voltage - 7E670

DaytonSKU: C1540557
MPN : 7E670
Weight : 19.3 lb
filler

Price:
$213.16 $259.95

Availability : Usually Ships in 1-3 Business Days

Designed for furnace blowers and other shaft-mounted fan and blower applications.

ItemDirect Drive Blower Motor
Motor ApplicationHVAC/R
Motor Sub ApplicationDirect Drive Fan/Blower
Motor DesignPermanent Split Capacitor
Motor Enclosure DesignOpen Air-Over
HP1/2
Nameplate RPM1075
Voltage115
Full Load Amps7.1
Hz60
Phase1
Frame48YZ
Motor Service Factor1
Max. Ambient Temp.40 Degrees C
Ins. ClassB
DutyContinuous
No. of Speeds4
Motor Mounting TypeRing/Stud
Motor Mounting PositionAll Angle
Motor BearingsSleeve
Motor Thermal ProtectionAuto
Motor Shaft RotationCW/CCW
Body Dia.5-5/8 in
Length Less Shaft6-5/32 in
Overall Length12-5/32 in
Shaft Dia.1/2 in
Shaft Length6 in
Motor Shaft DesignDouble-Flat
Capacitor Required2MDV6
Ring to Ring Center5-3/4 in
ApplicationBlowers, Fans and Air Circulators
Voltage Compatibility115, 120
