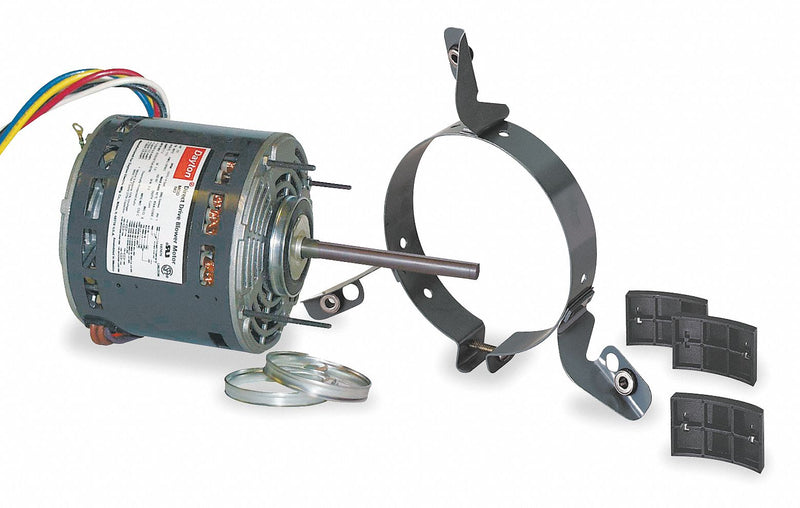

Dayton 1/2 HP Direct Drive Blower Motor, Permanent Split Capacitor, 1625 Nameplate RPM, 115 Voltage - 7E668

DaytonSKU: C1540555
MPN : 7E668
Weight : 18.45 lb
filler

Price:
$231.26 $282.02

Availability : Usually Ships in 1-3 Business Days

Designed for furnace blowers and other shaft-mounted fan and blower applications.

ItemDirect Drive Blower Motor
Motor ApplicationHVAC/R
Motor Sub ApplicationDirect Drive Fan/Blower
Motor DesignPermanent Split Capacitor
Motor Enclosure DesignOpen Air-Over
HP1/2
Nameplate RPM1625
Voltage115
Full Load Amps5.5
Hz60
Phase1
Frame48YZ
Motor Service Factor1
Max. Ambient Temp.40 Degrees C
Ins. ClassB
DutyContinuous
No. of Speeds3
Motor Mounting TypeStud
Motor Mounting PositionAll Angle
Motor BearingsSleeve
Motor Thermal ProtectionAuto
Motor Shaft RotationCW/CCW
Body Dia.5-5/8 in
Length Less Shaft6-3/16 in
Overall Length12-3/16 in
Shaft Dia.1/2 in
Shaft Length6 in
Motor Shaft DesignFlat
Capacitor Required2MDV9
Ring to Ring Center5-3/4 in
ApplicationBlowers, Fans and Air Circulators
Voltage Compatibility115, 120
