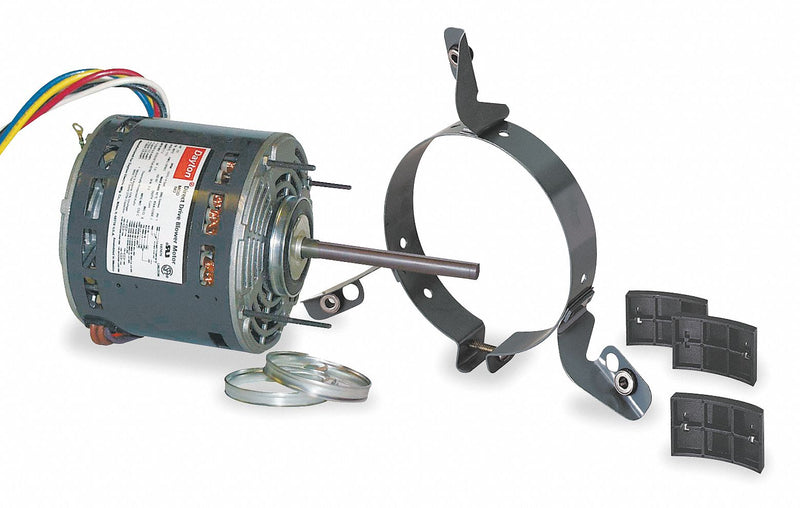

Designed for furnace blowers and other shaft-mounted fan and blower applications.
| Item | Direct Drive Blower Motor |
| Motor Application | HVAC/R |
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Open Air-Over |
| HP | 1/3 |
| Nameplate RPM | 1075 |
| Voltage | 277 |
| Full Load Amps | 2.2 |
| Hz | 60 |
| Phase | 1 |
| Frame | 48YZ |
| Motor Service Factor | 1 |
| Max. Ambient Temp. | 40 Degrees C |
| Ins. Class | B |
| Duty | Continuous |
| No. of Speeds | 3 |
| Motor Mounting Type | Stud |
| Motor Mounting Position | All Angle |
| Motor Bearings | Sleeve |
| Motor Thermal Protection | Auto |
| Motor Shaft Rotation | CWSE |
| Body Dia. | 5-5/8 in |
| Length Less Shaft | 6-3/16 in |
| Overall Length | 12-3/16 in |
| Shaft Dia. | 1/2 in |
| Shaft Length | 6 in |
| Motor Shaft Design | Flat |
| Capacitor Required | 2MDV3 |
| Ring to Ring Center | 5-3/4 in |
| Application | Blowers, Fans and Air Circulators |
| Voltage Compatibility | 208-230/277, 265, 277 |
