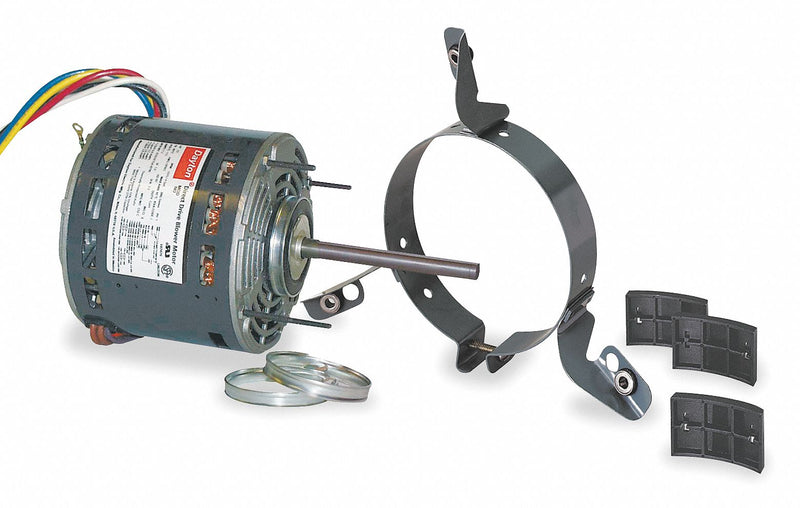

Dayton 1/3 HP Direct Drive Blower Motor, Permanent Split Capacitor, 1625 Nameplate RPM, 115 Voltage - 7E663

DaytonSKU: C1540550
MPN : 7E663
Weight : 12.3 lb
filler

Price:
$216.08 $263.51

Availability : Usually Ships in 1-3 Business Days

Designed for furnace blowers and other shaft-mounted fan and blower applications

ItemDirect Drive Blower Motor
Motor ApplicationHVAC/R
Motor Sub ApplicationDirect Drive Fan/Blower
Motor DesignPermanent Split Capacitor
Motor Enclosure DesignOpen Air-Over
HP1/3
Nameplate RPM1625
Voltage115
Full Load Amps5.1
Hz60
Phase1
Frame48YZ
Motor Service Factor1
Max. Ambient Temp.40 Degrees C
Ins. ClassB
DutyContinuous
No. of Speeds3
Motor Mounting TypeStud
Motor Mounting PositionAll Angle
Motor BearingsSleeve
Motor Thermal ProtectionAuto
Motor Shaft RotationCW/CCW
Body Dia.5-5/8 in
Length Less Shaft5-11/16 in
Overall Length11-11/16 in
Shaft Dia.1/2 in
Shaft Length6 in
Motor Shaft DesignFlat
Capacitor Required2MDV9
Ring to Ring Center5-1/4 in
ApplicationBlowers, Fans and Air Circulators
Voltage Compatibility115, 120
