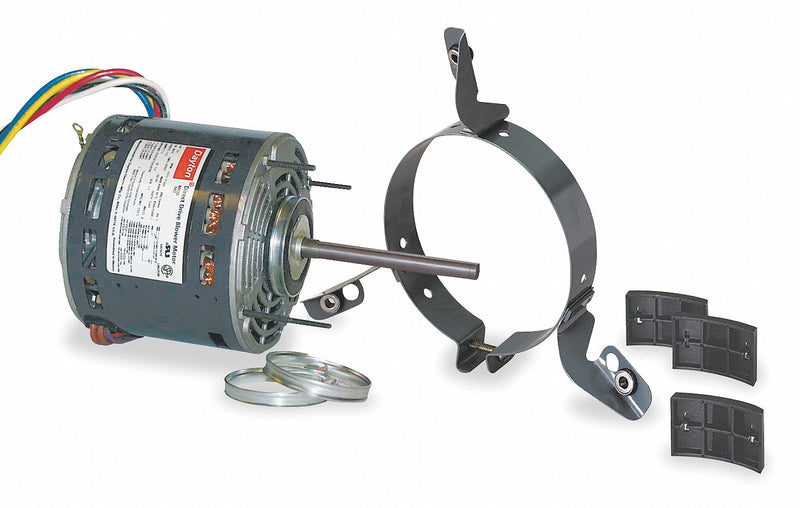

Designed for furnace blowers and other shaft-mounted fan and blower applications
| Item | Direct Drive Blower Motor |
| Motor Application | HVAC/R |
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Open Air-Over |
| HP | 1/4 |
| Nameplate RPM | 1075 |
| Voltage | 115 |
| Full Load Amps | 3.8 |
| Hz | 60 |
| Phase | 1 |
| Frame | 48YZ |
| Motor Service Factor | 1 |
| Max. Ambient Temp. | 40 Degrees C |
| Ins. Class | B |
| Duty | Continuous |
| No. of Speeds | 4 |
| Motor Mounting Type | Ring/Stud |
| Motor Mounting Position | All Angle |
| Motor Bearings | Sleeve |
| Motor Thermal Protection | Auto |
| Motor Shaft Rotation | CW/CCW |
| Body Dia. | 5-5/8 in |
| Length Less Shaft | 5-9/16 in |
| Overall Length | 11-9/16 in |
| Shaft Dia. | 1/2 in |
| Shaft Length | 6 in |
| Motor Shaft Design | Double-Flat |
| Capacitor Required | 2MDV4 |
| Ring to Ring Center | 5-5/32 in |
| Application | Blowers, Fans and Air Circulators |
| Voltage Compatibility | 115, 120 |
