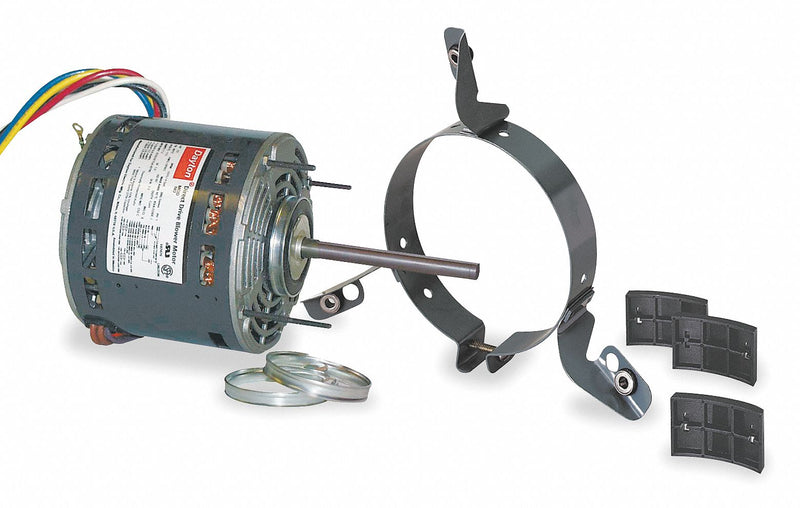

Dayton 1 HP Direct Drive Blower Motor, Permanent Split Capacitor, 1625 Nameplate RPM, 208-230 Voltage - 7E679

DaytonSKU: C1540562
MPN : 7E679
Weight : 20.1 lb
filler

Price:
$211.37 $257.77

Availability : Usually Ships in 1-3 Business Days

Designed for furnace blowers and other shaft-mounted fan and blower applications.

ItemDirect Drive Blower Motor
Motor ApplicationHVAC/R
Motor Sub ApplicationDirect Drive Fan/Blower
Motor DesignPermanent Split Capacitor
Motor Enclosure DesignOpen Air-Over
HP1
Nameplate RPM1625
Voltage208-230
Full Load Amps6-6.8
Hz60
Phase1
Frame48YZ
Motor Service Factor1
Max. Ambient Temp.40 Degrees C
Ins. ClassB
DutyContinuous
No. of Speeds3
Motor Mounting TypeStud
Motor Mounting PositionAll Angle
Motor BearingsSleeve
Motor Thermal ProtectionAuto
Motor Shaft RotationCW/CCW
Body Dia.5-5/8 in
Length Less Shaft7-7/16 in
Overall Length13-7/16 in
Shaft Dia.1/2 in
Shaft Length6 in
Motor Shaft DesignFlat
Capacitor Required2MDW2
Ring to Ring Center7 in
ApplicationBlowers, Fans and Air Circulators
Voltage Compatibility115/208-230, 208-230, 208-240
