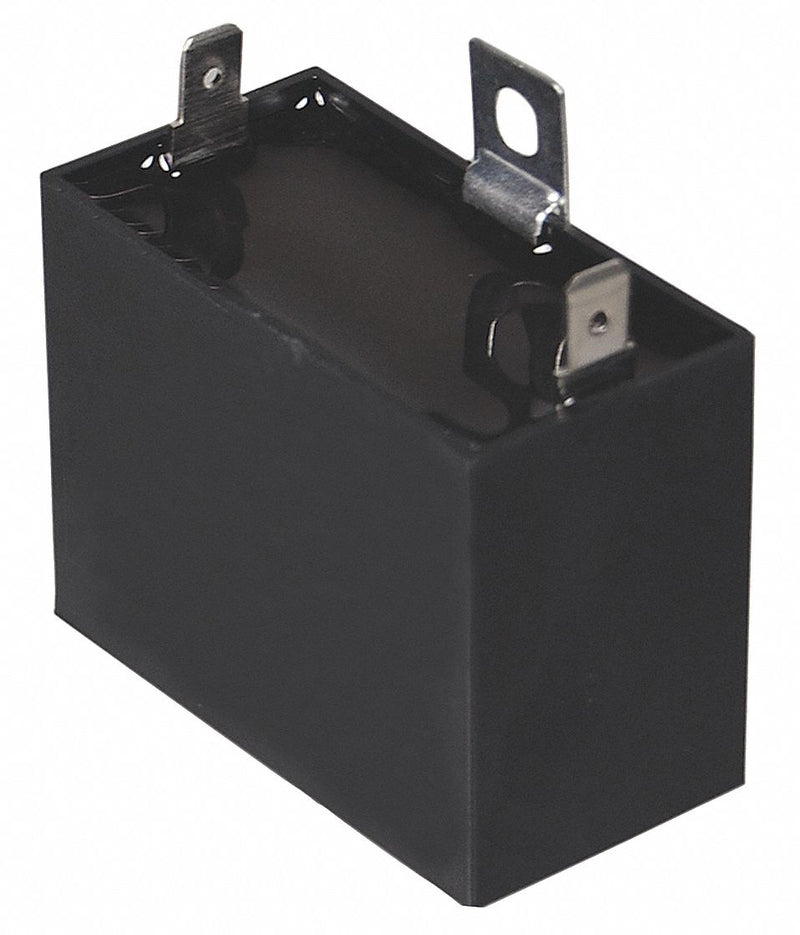

Dayton Rectangle Motor Run Capacitor,15 Microfarad Rating,440VAC Voltage - 22F180

DaytonSKU: C1549054
MPN : 22F180
Weight : 1.0 lb

filler

Price:
$18.11 $29.22

Availability : Usually Ships in 7 Business Days

Dry Motor Run Capacitors,Temp. range: -40 to 85C (-40 to 185F),Feature ABS case constructed with self-healing dielectric metalized polypropylene film, with 1/4" blade, quick-connect terminals, and metal tab mounting bracket. For use in blower, fan, and pump motors.,RoHS Compliant and UL Recognized.

Motor Capacitor TypeMotor Run Capacitor
Microfarad Rating15
Capacitor Voltage440V AC
Hz60/50
Capacitor ShapeRectangle
Case Height1 5/8 in
Overall Height2 1/4 in
Overall Width2 1/4 in
Overall Depth1 3/16 in
Terminal Type1/4 in Male Quick-Connect
Temp. Range-40 Degrees to 85 Degrees C
Case MaterialPlastic
For Use WithElectric Motors
StandardscULs Recognized (E315415)
