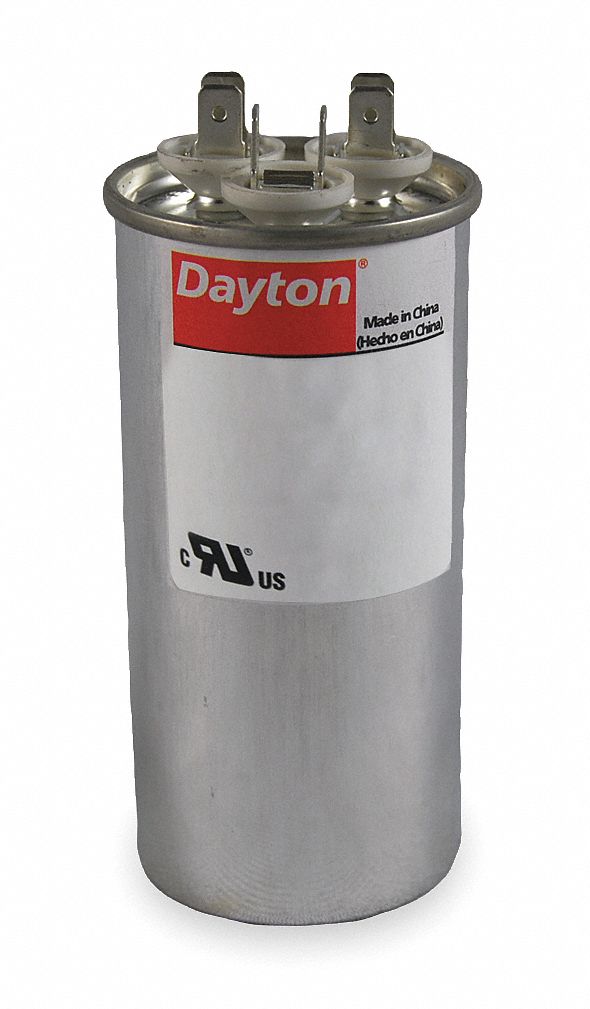

This aluminum, hermetically sealed capacitor is designed to help improve the electrical performance of motors, air conditioners, and refrigeration equipment. PCB-free, the capacitor features an aluminum case with steel cover and 1/4 male quick-connect terminals with plastic insulators. Protected to 10,000 AFC.
| Motor Capacitor Type | Motor Dual Run Capacitor |
| Microfarad Rating | 80/10 |
| Capacitor Voltage | 370V AC |
| Hz | 60/50 |
| Capacitor Shape | Round |
| Diameter | 2 1/2 in |
| Case Height | 5 15/16 in |
| Overall Height | 5 13/16 in |
| Overall Width | 2 1/2 in |
| Terminal Type | 1/4 in Male Quick-Connect |
| Temp. Range | -25 Degrees to 85 Degrees C |
| Case Material | Aluminum |
| Cover Material | Steel |
| Standards | UL Recognized (E136401) |
