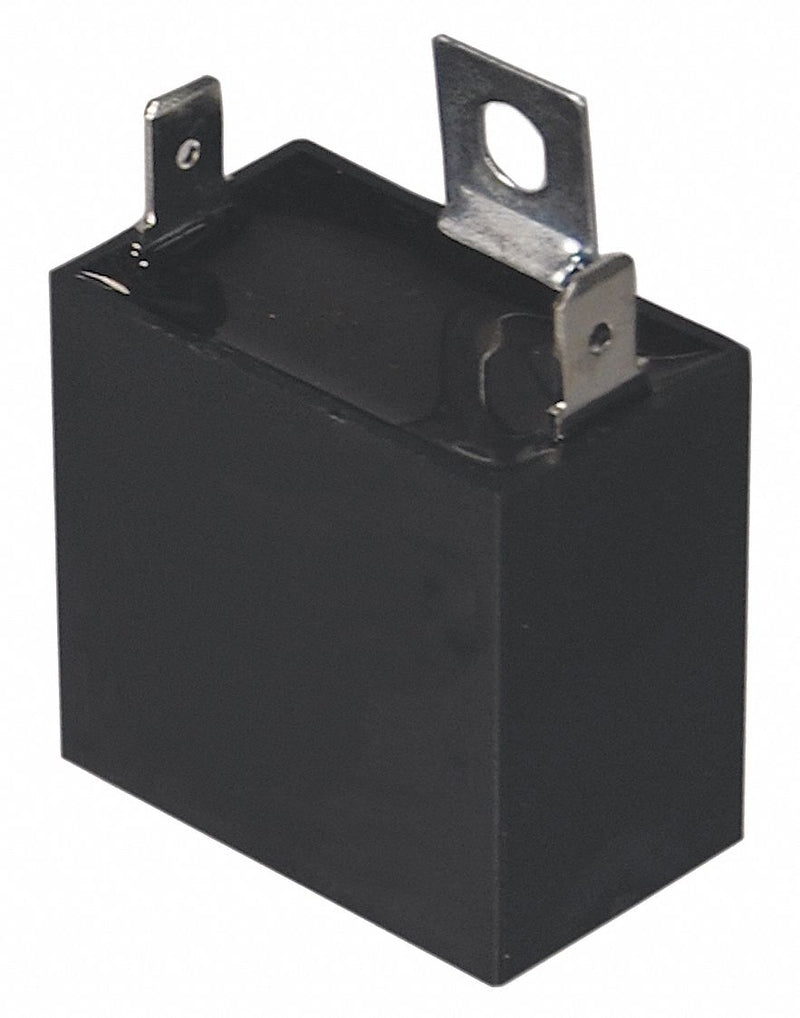

Dayton Rectangle Motor Run Capacitor,4 Microfarad Rating,370VAC Voltage - 22F165

DaytonSKU: C1549045
MPN : 22F165
Weight : 1.0 lb


$9.41 $15.18

Availability : Usually Ships in 1-3 Business Days

Dry Motor Run Capacitors,Temp. range: -40 to 85C (-40 to 185F),Feature ABS case constructed with self-healing dielectric metalized polypropylene film, with 1/4" blade, quick-connect terminals, and metal tab mounting bracket. For use in blower, fan, and pump motors.,RoHS Compliant and UL Recognized.

Motor Capacitor TypeMotor Run Capacitor
Microfarad Rating4
Capacitor Voltage370V AC
Capacitor ShapeRectangle
Case Height1 3/8 in
Overall Height1 7/8 in
Overall Width1 7/16 in
Overall Depth7/8 in
Terminal Type1/4 in Male Quick-Connect
Temp. Range-40 Degrees to 85 Degrees C
Case MaterialPlastic
For Use WithElectric Motors
StandardscULs Recognized (E315415)
