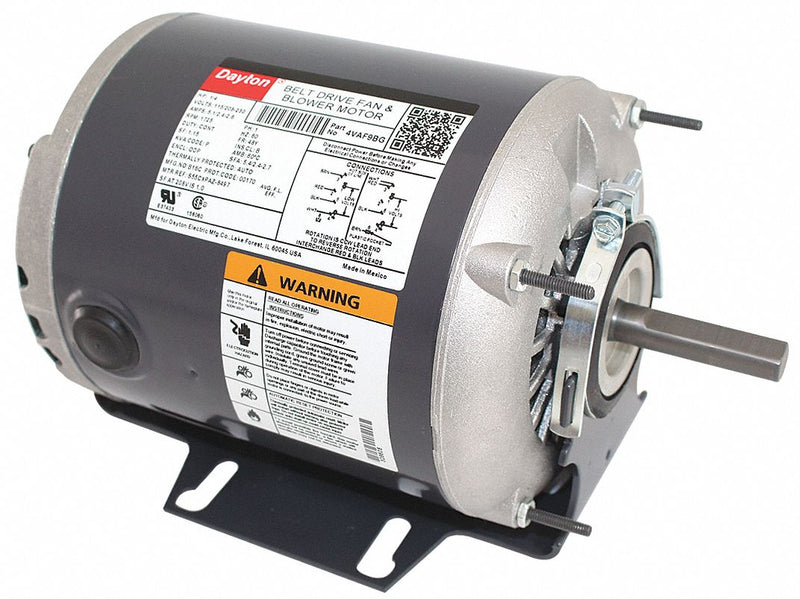

Designed for use in roof ventilators, this single-speed, 1-phase, continuous-duty with quick-connect terminals. Notched to replace 48 or 56 frame.
| Item | Belt Drive Motor |
| Motor Application | HVAC/R |
| Motor Sub Application | Belt Drive Fan/Blower |
| Motor Design | Split-Phase |
| HP | 1/4 |
| No. of Speeds | 1 |
| Nameplate RPM | 1725 |
| Voltage | 115/208-230 |
| Frame | 48Y |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Type | Cradle Base |
| Motor Mounting Position | All Angle |
| Hz | 60 |
| Full Load Amps | 5.1/2.4-2.6 |
| Motor Thermal Protection | Auto |
| Ins. Class | B |
| Motor Service Factor | 1.15 |
| Motor Bearings | Ball |
| Motor Frame Material | Steel |
| Max. Ambient Temp. | 60 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Shaft Dia. | 1/2 in |
| Shaft Length | 1 7/8 in |
| Length Less Shaft | 7 7/8 in |
| Overall Length | 9 13/16 in |
| Body Dia. | 5 5/8 in |
| Mounting Stud Pattern | 3-5/8 in x 3-5/8 in |
| Resilient Ring Dia. | 2 1/4 in |
| Ring to Ring Center | 7 7/16 in |
| Nominal Efficiency | 62 % |
| Duty | Continuous |
| Phase | 1 |
| Standards | CSA Certified (258501), UL Recognized (E37403) |
| Voltage Compatibility | 115, 115/208-230, 115/230, 120, 120/240, 208, 208-230, 208-240, 230, 240 |
