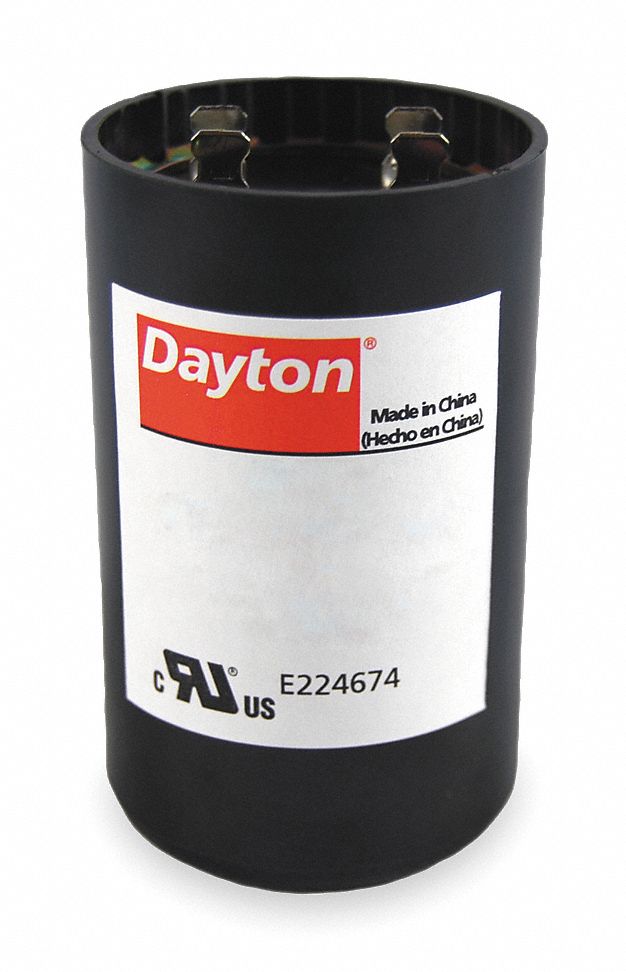

Electrolytic, nonpolarized capacitor provides normal intermittent service on single-phase AC motor starting circuits. Round, molded cases protect the capacitor from oil, dirt, moisture, and grease.
| Motor Capacitor Type | Motor Start Capacitor |
| Microfarad Rating | 233-280 |
| Capacitor Voltage | 220-250V AC |
| Hz | 60/50 |
| Capacitor Shape | Round |
| Diameter | 2 1/16 in |
| Case Height | 4 3/8 in |
| Overall Height | 4 3/8 in |
| Overall Width | 2 1/16 in |
| Terminal Type | 1/4 in Male Quick-Connect |
| Temp. Range | -40 Degrees to 65 Degrees C |
| Starts per Hour | 20 |
| Max. Power Factor | 0.1 |
| Case Material | Plastic |
| Standards | UL Recognized for US and Canada (E224674) |
