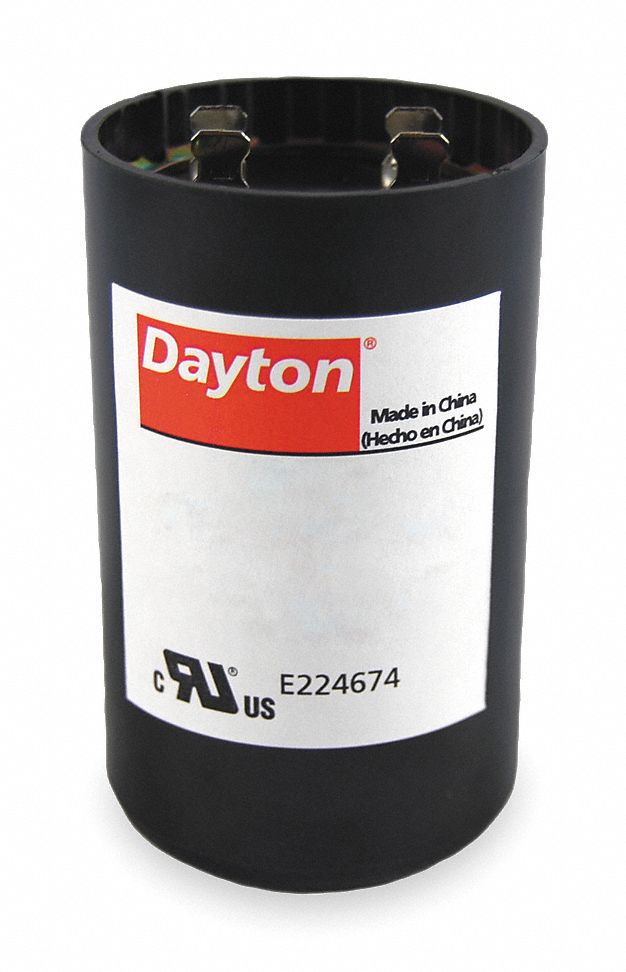

Start Capacitors,Temp. range: -40 to 65C (-40 to 149F),Electrolytic, nonpolarized capacitors are designed for normal intermittent service on single-phase AC motor starting circuits. Round, molded cases protect the capacitor from oil, dirt, moisture, and grease.,RoHS compliant. UL and C-UL Recognized.
| Motor Capacitor Type | Motor Start Capacitor |
| Microfarad Rating | 243-292 |
| Capacitor Voltage | 110-125V AC |
| Hz | 60/50 |
| Capacitor Shape | Round |
| Diameter | 1 7/16 in |
| Case Height | 3 3/8 in |
| Overall Height | 3 3/8 in |
| Overall Width | 1 7/16 in |
| Terminal Type | 1/4 in Male Quick-Connect |
| Temp. Range | -40 Degrees to 65 Degrees C |
| Starts per Hour | 20 |
| Max. Power Factor | 0.1 |
| Case Material | Plastic |
| Standards | UL Recognized for US and Canada (E224674) |
