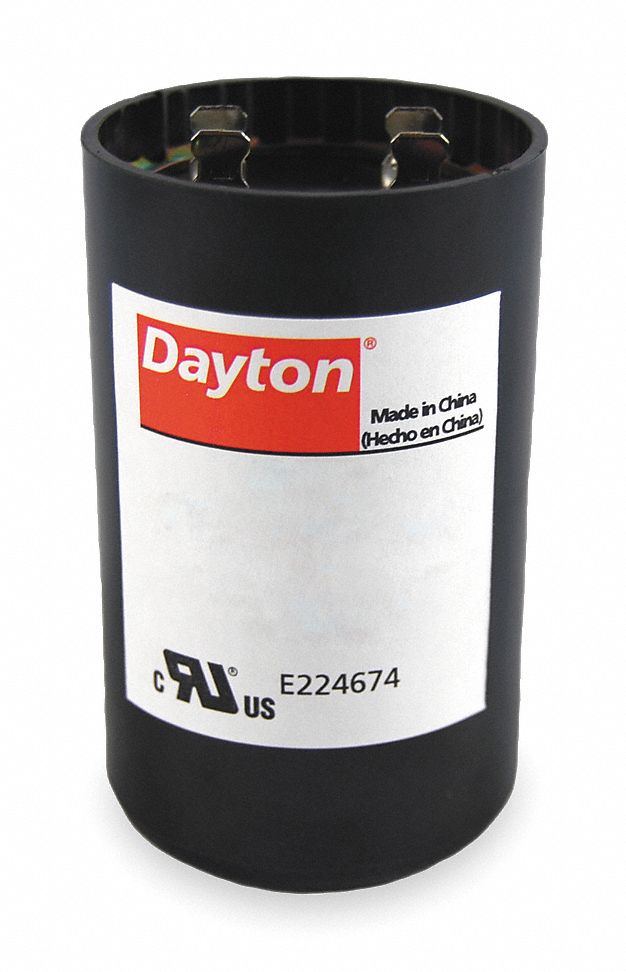

Dayton Round Motor Start Capacitor,270-324 Microfarad Rating,110-125VAC Voltage - 2MDT3

DaytonSKU: C1551524
MPN : 2MDT3
Weight : 0.2 lb
filler

Price:
$14.08 $17.17

Availability : Usually Ships in 1-3 Business Days

Electrolytic, nonpolarized capacitor provides normal intermittent service on single-phase AC motor starting circuits. Round, molded cases protect the capacitor from oil, dirt, moisture, and grease.

Motor Capacitor TypeMotor Start Capacitor
Microfarad Rating270-324
Capacitor Voltage110-125V AC
Hz60/50
Capacitor ShapeRound
Diameter1 7/16 in
Case Height3 3/8 in
Overall Height3 3/8 in
Overall Width1 7/16 in
Terminal Type1/4 in Male Quick-Connect
Temp. Range-40 Degrees to 65 Degrees C
Starts per Hour20
Max. Power Factor0.1
Case MaterialPlastic
StandardsUL Recognized for US and Canada (E224674)
