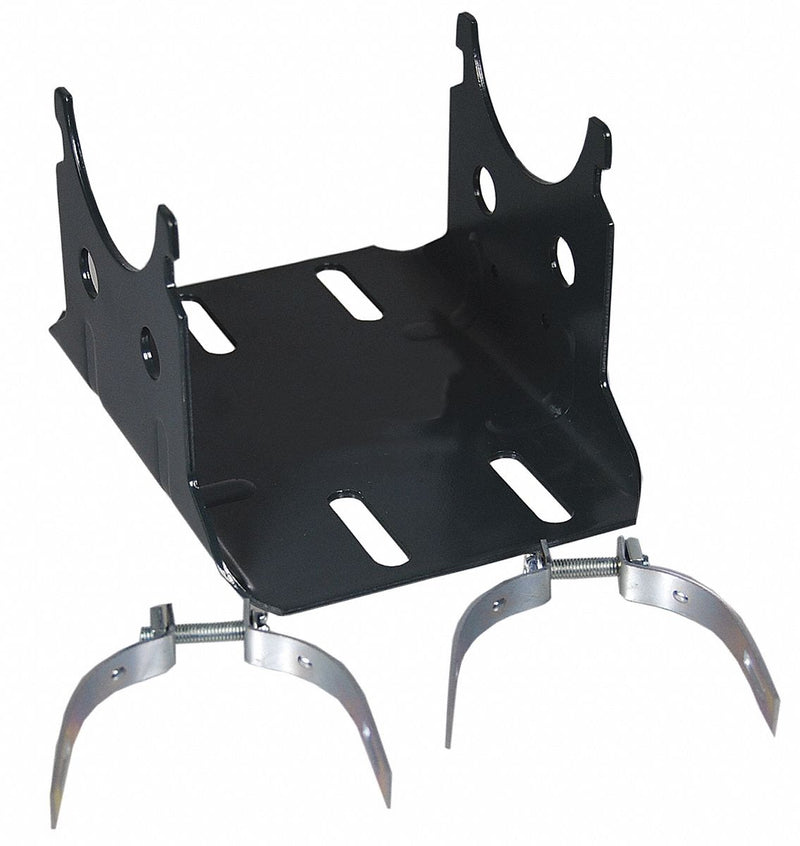

Dayton Motor Mounting Base,For NEMA Frame 4.4 in Frame,4 3/8 in Length (In.),6 in Width (In.) - 22F206

DaytonSKU: C1549070
MPN : 22F206
Weight : 1.15 lb


$34.42 $55.51

Availability : Usually Ships in 7 Business Days

Motor Mounting Base; For NEMA Frame: 4.4 in Frame; Height (In.): 2 15/16 in; Width (In.): 6 in; Length (In.): 4 3/8 in; Bolt Size (In.): 5/16 in; Motor Body Dia. (In.): 4.4 in; Ring Dia. (In.): 2 1/2 in; Ring to Ring Center (In.): 4 1/4 in; Shaft Height (In.): 3 in; Mounting Holes O.C. W (In.): 4 1/4 in; Mounting Holes O.C. L (In.): 1 3/4 in; Material: Stamped Steel; Finish: Baked-on Enamel; Color: Gray; Includes: 2 Clamps

ItemMotor Mounting Base
For NEMA Frame4.4 in Frame
Height (In.)2 15/16 in
Width (In.)6 in
Length (In.)4 3/8 in
Bolt Size (In.)5/16 in
Motor Body Dia. (In.)4.4 in
Ring Dia. (In.)2 1/2 in
Ring to Ring Center (In.)4 1/4 in
Shaft Height (In.)3 in
Mounting Holes O.C. W (In.)4 1/4 in
Mounting Holes O.C. L (In.)1 3/4 in
MaterialStamped Steel
FinishBaked-on Enamel
Includes2 Clamps
