This motor is suitable for use in dusty, dirty, and nonhazardous environments.

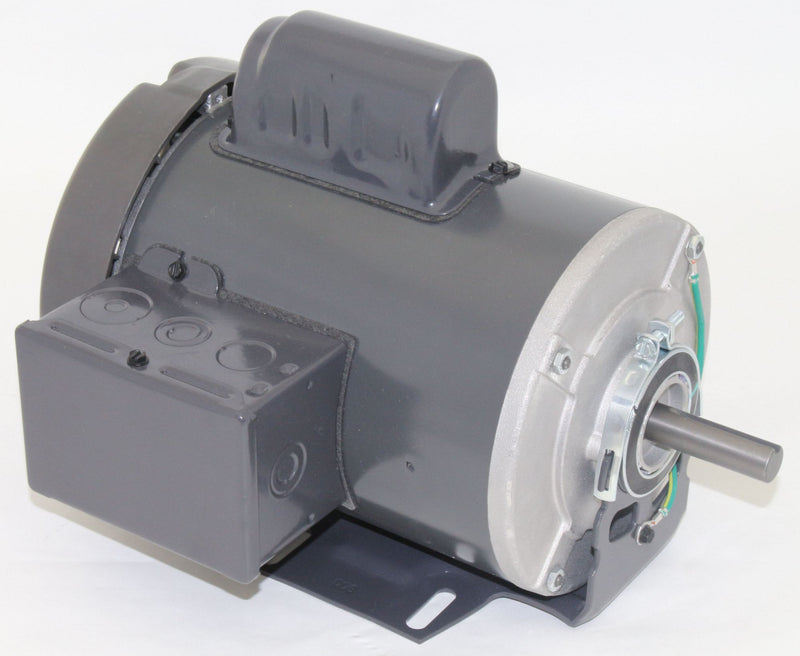

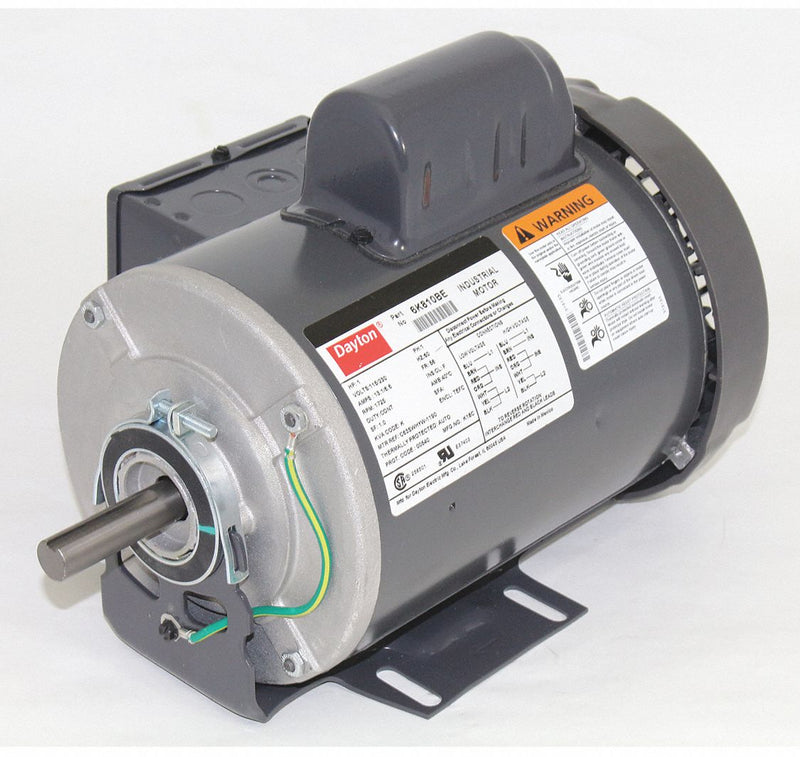

| Item | General Purpose Motor |
| Motor Application | General Application |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| HP | 1 |
| Nameplate RPM | 1725 |
| Frame | 56 |
| Voltage | 115/230 |
| Hz | 60 |
| Phase | 1 |
| Full Load Amps | 13.1/6.6 |
| No. of Speeds | 1 |
| Motor Mounting Type | Cradle Base |
| Motor Thermal Protection | Auto |
| Ins. Class | B |
| Motor Service Factor | 1 |
| Motor Bearings | Ball |
| Motor Frame Material | Rolled Steel |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 7/8 in |
| Length Less Shaft | 10 7/8 in |
| Overall Length | 12 13/16 in |
| Motor Shaft Design | Keyed |
| Standards | CSA (258501), UL (E37403) |
| Duty | Continuous |
| Motor Efficiency Group | Standard Efficient |
| Nominal Efficiency | 72.3 % |
| Manufacturers Warranty Length | 1 yr |
