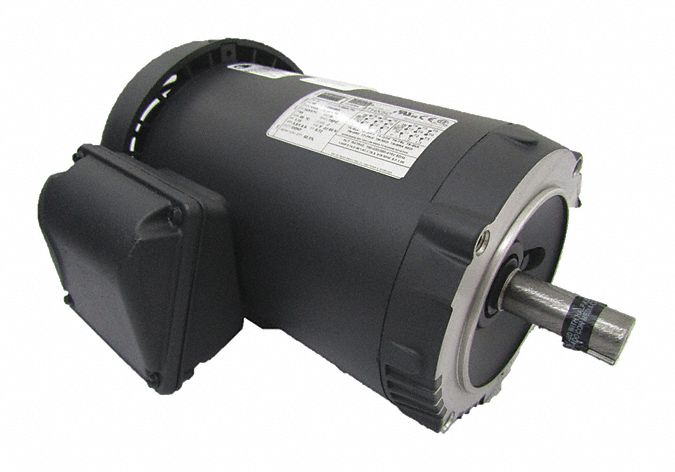

General Purpose Motor; Motor Application: General Application; Motor Design: 3-Phase; Motor Enclosure Design: Totally Enclosed Fan-Cooled; HP: 1; Nameplate RPM: 1140; Frame: 145TC; Voltage: 230/460; Hz: 60; Phase: 3; Full Load Amps: 3.3/1.7; No. of Speeds: 1; Motor Mounting Type: Face; Motor Mounting Position: All Angle; Motor Thermal Protection: None; Ins. Class: F; Motor Service Factor: 1.15; Motor Bearings: Ball; Motor Frame Material: Steel; Max. Ambient Temp.: 40 Degrees C; Motor Shaft Rotation: CW/CCW; Shaft Dia.: 7/8 in; Shaft Length: 2 1/4 in; Length Less Shaft: 11 5/8 in; Overall Length: 13 7/8 in; Motor Shaft Design: Keyed; Standards: UL, CSA, CE; Duty: Continuous; Motor Efficiency Group: NEMA Premium Efficient; Nominal Efficiency: 82.5 %; CC Number: CC029A; Inverter Rated: Yes; Manufacturers Warranty Length: 1 yr; Green Environmental Attribute: Product Contributes To Reducing Energy Consumption; Green Certification or Other Recognition: NEMA Premium(R) Rated
| Item | General Purpose Motor |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| HP | 1 |
| Nameplate RPM | 1140 |
| Frame | 145TC |
| Voltage | 230/460 |
| Hz | 60 |
| Phase | 3 |
| Full Load Amps | 3.3/1.7 |
| No. of Speeds | 1 |
| Motor Mounting Type | Face |
| Motor Mounting Position | All Angle |
| Motor Thermal Protection | None |
| Ins. Class | F |
| Motor Service Factor | 1.15 |
| Motor Bearings | Ball |
| Motor Frame Material | Steel |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Shaft Dia. | 7/8 in |
| Shaft Length | 2 1/4 in |
| Length Less Shaft | 11 5/8 in |
| Overall Length | 13 7/8 in |
| Motor Shaft Design | Keyed |
| Standards | UL, CSA, CE |
| Duty | Continuous |
| Motor Efficiency Group | NEMA Premium Efficient |
| Nominal Efficiency | 82.5 % |
| CC Number | CC029A |
| Inverter Rated | Yes |
| Manufacturers Warranty Length | 1 yr |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Green Certification or Other Recognition | NEMA Premium(R) Rated |
