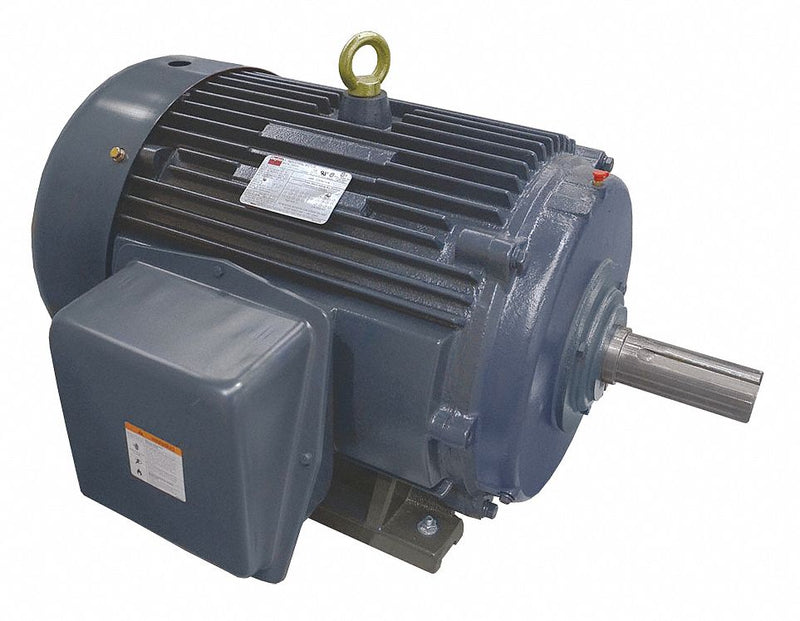

This general purpose motor is suitable for dusty, dirty, nonhazardous applications with pumps, ventilation equipment, machine tools, and other industrial equipment. It can withstand high voltage spikes produced by variable frequency drives, and can run at slow speeds without overheating. It is not for cooling tower applications.
| Item | General Purpose Motor |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| HP | 50 |
| Nameplate RPM | 1780 |
| Frame | 326T |
| Voltage | 230/460 |
| Hz | 60 |
| Phase | 3 |
| Full Load Amps | 119/59.5 |
| No. of Speeds | 1 |
| Motor Mounting Type | Rigid Base |
| Motor Mounting Position | Horizontal |
| Motor Thermal Protection | None |
| Ins. Class | F |
| Motor Service Factor | 1.15 |
| Motor Bearings | Ball |
| Motor Frame Material | Cast Iron |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Shaft Dia. | 2 1/8 in |
| Shaft Length | 5 1/4 in |
| Length Less Shaft | 28 5/8 in |
| Overall Length | 31 7/16 in |
| Motor Shaft Design | Keyed |
| Standards | CE, CSA, UL |
| Duty | Continuous |
| Motor Efficiency Group | NEMA Premium Efficient |
| Nominal Efficiency | 94.5 % |
| CC Number | CC003A |
| Inverter Rated | Yes |
| Manufacturers Warranty Length | 3 yr |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Green Certification or Other Recognition | NEMA Premium(R) Rated |
