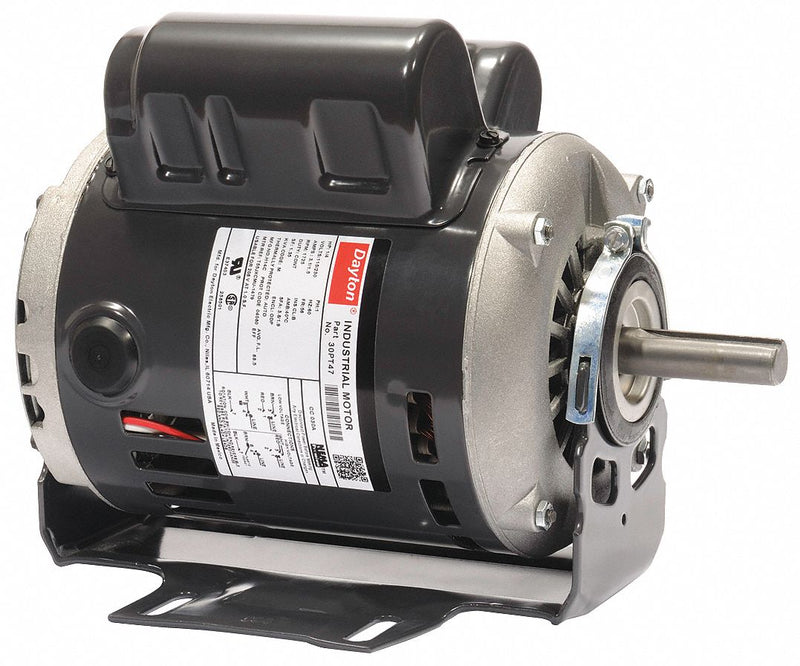

Dayton 1/4 HP, General Purpose Motor, Capacitor-Start/Run, 1725 Nameplate RPM, 115/230 Voltage - 30PT48

DaytonSKU: C1554104
MPN : 30PT48
Weight : 21.0 lb

filler

Price:
$334.94 $540.23

Availability : Usually Ships in 1-3 Business Days

Motor complies with 2015 efficiency legislation for small-frame motors. 40C max. ambient temperature.

ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor DesignCapacitor-Start/Run
Motor Enclosure DesignOpen Dripproof
HP1/4
Nameplate RPM1725
Frame56
Voltage115/230
Hz60
Phase1
Full Load Amps3.1/1.5
No. of Speeds1
Motor Mounting TypeCradle Base
Motor Mounting PositionHorizontal
Motor Thermal ProtectionNone
Ins. ClassB
Motor Service Factor1.35
Motor BearingsBall
Motor Frame MaterialRolled Steel
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.5/8 in
Shaft Length1 7/8 in
Length Less Shaft8 3/8 in
Overall Length10 5/16 in
Motor Shaft DesignKeyed
StandardsCSA (258501), UL (E47479)
DutyContinuous
Motor Efficiency GroupPremium Efficient
Nominal Efficiency68.5 %
Inverter RatedNo
IncludesStart Cap 297MFD @ 125V
Manufacturers Warranty Length1 yr
Green Environmental AttributeProduct Contributes To Reducing Energy Consumption
Green Certification or Other RecognitionEnergy Aware Certified
