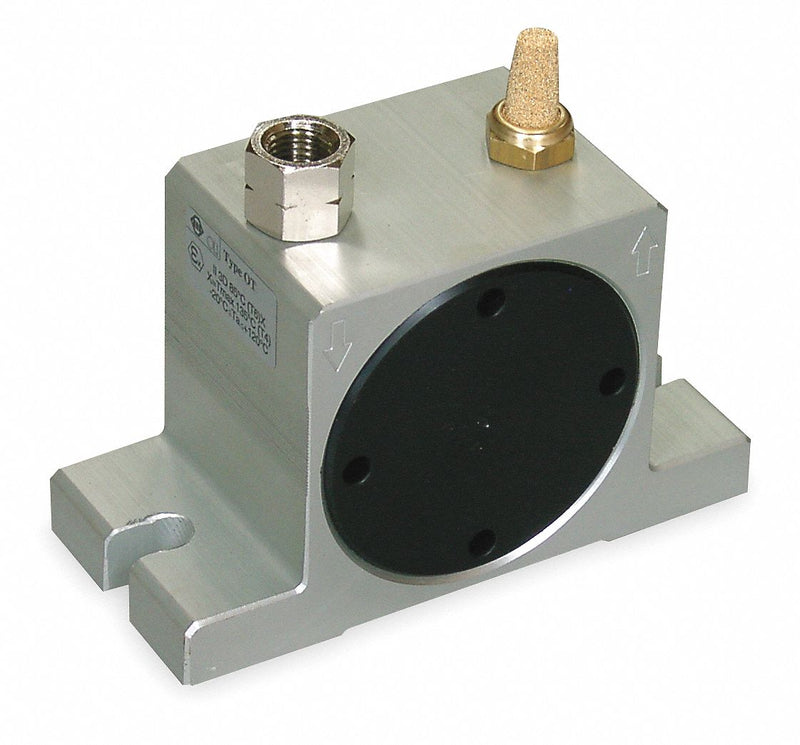

This highly efficient, food-grade, low-noise vibrator offers a superior power-to-weight ratio in a lightweight, compact, sealed design. It provides high-frequency, controllable speed, and low-amplitude, gentle vibration. The turbine has integrated flyweights that rotate on two oversized ball bearings. This unit is maintenance-free when used with filtered/lubricated air.
| Item | Pneumatic Vibrator |
| Vibrator Type | Turbine |
| Force Rating | 1117 lb |
| Duty | Continuous |
| Bin Weight Capacity | 11,170 lb |
| Speed @ 60 psi | 15,500 VPM |
| Speed @ 80 psi | 17,000 VPM |
| CFM @ 80 PSI | 16 |
| dB @ 80 psi | 65 |
| Max. Pressure | 90 psi |
| Max. Temp. | 250 Degrees F |
| Inlet Port | 1/4" NPT |
| Outlet Port | 1/4" BSPP |
| Muffler | Included |
| Mounting | Any Position |
| Mounting Plate | No |
| Housing Material | Aluminum |
| Overall Length | 5" |
| Overall Width | 2-1/4" |
| Overall Height | 3-1/8" |
| Application | All Types of Bins Containing Fine to Granular Materials or Packing Coarse Materials and Unjamming Parts in Conveyor Lines, Chutes and Pipes |
