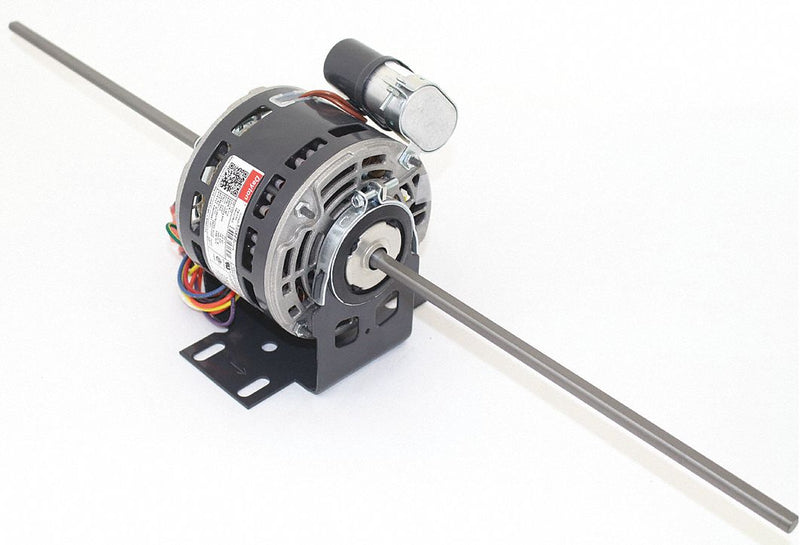

Dayton 1/10 HP Room Air Conditioner Motor,Permanent Split Capacitor,1050 Nameplate RPM,115 Voltage,Frame 42 - 5WJC0

DaytonSKU: C1565214
MPN : 5WJC0
Weight : 10.0 lb

filler

Price:
$224.54 $362.17

Availability : Usually Ships in 3 Business Days

Permanent Split Capacitor Dual-Shaft Motors,Enclosure: open air-over Service factor: 1.0 Rotation: CW/CCW Thermal protection: auto Bearings: sleeve Duty: continuous air-over Capacitor included,For heating/air conditioning, fan coil units, furnace blowers, unit heaters, and other shaft-mounted fan and blower applications. Feature quick-change reversing plug.,UL Recognized and CSA Certified.

ItemRoom Air Conditioner Motor
Motor DesignPermanent Split Capacitor
HP1/10
No. of Speeds4
Voltage115
Motor Shaft RotationCW/CCW
Frame42Y
Motor Enclosure DesignOpen Air-Over
Motor Mounting TypeCradle Base
Shaft Dia.3/8 in
Shaft Length10 1/2 in
Motor Thermal ProtectionAuto
Nameplate RPM1050
Phase1
Motor ApplicationHVAC/R
Motor Sub ApplicationRoom Air Conditioner
Motor BearingsSleeve
Capacitor RequiredYes
Ins. ClassB
Mounting Stud Pattern3-3/16 in x 3-3/16 in
Motor Service Factor1
DutyContinuous
Hz60
Full Load Amps1.62
Max. Ambient Temp.60 Degrees C
Body Dia.5 in
Length Less Shaft4 5/8 in
Motor Shaft DesignFlat
Stud Size#8-32 UNC x 1 in
Ring to Ring Center4 1/4 in
Resilient Ring Dia.2 1/2 in
Bolt Circle Dia.4 7/16 in
Lead Length59 in
Includes5 MFD 370V AC Capacitor
StandardsCSA Certified (258501), UL Recognized (E37403)
