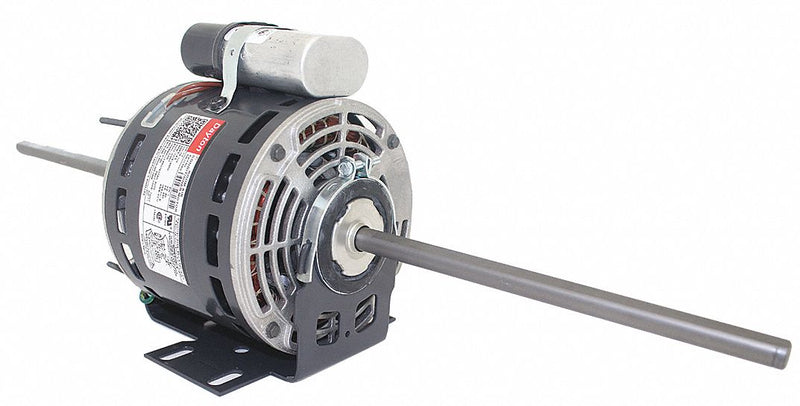

Dayton 1/4 HP Room Air Conditioner Motor,Permanent Split Capacitor,1625 Nameplate RPM,115 Voltage,Frame 48Y - 5WJC4

DaytonSKU: C1565218
MPN : 5WJC4
Weight : 14.9 lb

filler

Price:
$216.30 $348.88

Availability : Usually Ships in 3 Business Days

Permanent Split Capacitor Dual-Shaft Motors,Enclosure: open air-over Service factor: 1.0 Rotation: CW/CCW Thermal protection: auto Bearings: sleeve Duty: continuous air-over Capacitor included,For heating/air conditioning, fan coil units, furnace blowers, unit heaters, and other shaft-mounted fan and blower applications. Feature quick-change reversing plug.,UL Recognized and CSA Certified.

ItemRoom Air Conditioner Motor
Motor DesignPermanent Split Capacitor
HP1/4
No. of Speeds4
Voltage115
Motor Shaft RotationCW/CCW
Frame48Y
Motor Enclosure DesignOpen Air-Over
Motor Mounting TypeCradle Base
Shaft Dia.1/2 in
Shaft Length8 1/2 in
Motor Thermal ProtectionAuto
Nameplate RPM1625
Phase1
Motor ApplicationHVAC/R
Motor Sub ApplicationRoom Air Conditioner
Motor BearingsSleeve
Capacitor RequiredYes
Ins. ClassB
Mounting Stud Pattern3-5/8 in x 3-5/8 in
Motor Service Factor1
DutyContinuous
Hz60
Full Load Amps3.4
Max. Ambient Temp.60 Degrees C
Body Dia.5 5/8 in
Length Less Shaft3 2/5 in
Motor Shaft DesignFlat
Stud Size#8-32 UNC
Ring to Ring Center5 in
Resilient Ring Dia.2 1/2 in
Bolt Circle Dia.5 1/8 in
Lead Length59 in
Includes7.5 MFD 370V AC Capacitor
StandardsCSA Certified (244617), UL Recognized (E37403)
