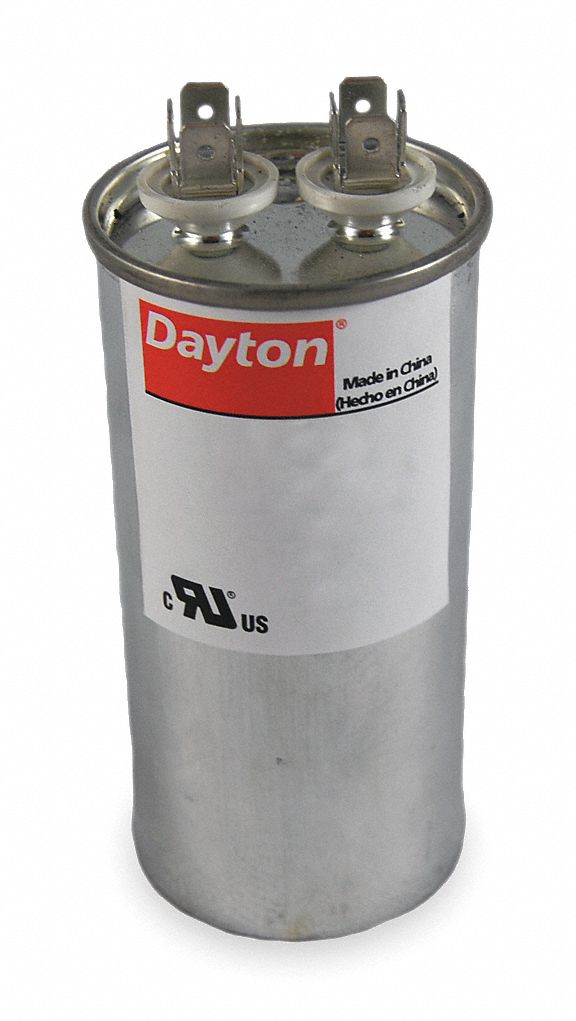

With a temperature range of -40 to 185F, this hermetically sealed capacitor improves the electrical performance of motors, air conditioners, and refrigeration equipment. PCB-free and RoHS-compliant, it features an aluminum case with a steel cover and 14" male quick-connect terminals with plastic insulators. It's protected to 10,000 AFC.
| Motor Capacitor Type | Motor Run Capacitor |
| Microfarad Rating | 15 |
| Capacitor Voltage | 370V AC |
| Hz | 60/50 |
| Capacitor Shape | Round |
| Diameter | 1 9/16 in |
| Case Height | 2 1/2 in |
| Overall Height | 3 in |
| Overall Width | 1 9/16 in |
| Overall Depth | 2 3/4 in |
| Terminal Type | 1/4 in Male Quick-Connect |
| Temp. Range | -40 Degrees to 85 Degrees C |
| Case Material | Aluminum |
| Cover Material | Steel |
| Standards | UL (E364533) |
