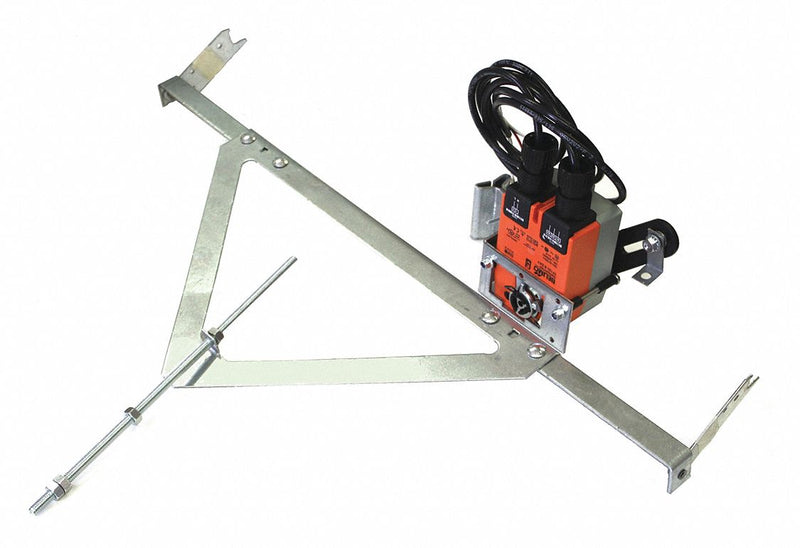

Optional motor should only be used with double-panel shutters in vertical-mount, exhaust installations. Dimensions include installed depth from frame back. Actuator includes end switch. Not for use with fiberglass shutters.
| Item | Shutter Motor |
| Voltage | 100-240 |
| Hz | 60 |
| Phase | 1 |
| Amps | 0.35/0.2 |
| Height (In.) | 9 3/4 in |
| Width (In.) | 5 7/8 in |
| Depth (In.) | 7 1/4 in |
| Mounting Position | Vertical |
| For Use With | Dayton(R) Double-Panel Exhaust Shutters 54 in to 60 in |
| Includes | Linkage and Wiring Terminal Block, Mounting Bracket |
