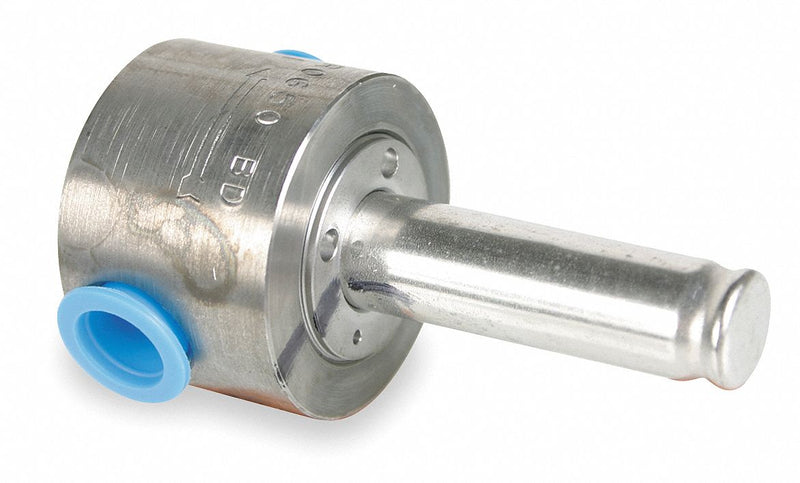

Steam Solenoid Valve Less Coil; Solenoid Valve Product Group: Steam Solenoid Valve Less Coil; Valve Ways and Positions: 2-Way; Valve Configuration: Normally Closed; Media - Valves: Air, Steam, Water; Pipe Size - Valves: 1/4 in; Min. Operating Pressure Differential: 0 psi; Max. Operating Pressure Differential Air/Inert Gas: 150 psi; Max. Operating Pressure Differential Light Oil: 150 psi; Max. Operating Pressure Differential Water: 150 psi; Environmental Rating - Valves: Corrosive, Indoor, Outdoor; Coefficient of Volume: 0.05; Body Material - Valves: Stainless Steel; Seal Material - Valves: PTFE; Orifice Dia.: 3/64"; Safe Working Water Pressure: 500 psi; Safe Working Steam Pressure: 500 psi; Operation Type: Direct Acting; Steam Capacity: 11.8 lb./hr.; Max. Fluid Temp.: 400 Degrees F; Overall Length: 1-1/2"; Overall Height: 2-7/8"; For Use With: Dayton Solenoid Coils
| Item | Steam Solenoid Valve Less Coil |
| Solenoid Valve Product Group | Steam Solenoid Valve Less Coil |
| Valve Ways and Positions | 2-Way |
| Valve Configuration | Normally Closed |
| Media - Valves | Air, Steam, Water |
| Pipe Size - Valves | 1/4 in |
| Min. Operating Pressure Differential | 0 psi |
| Max. Operating Pressure Differential Air/Inert Gas | 150 psi |
| Max. Operating Pressure Differential Light Oil | 150 psi |
| Max. Operating Pressure Differential Water | 150 psi |
| Environmental Rating - Valves | Corrosive, Indoor, Outdoor |
| Coefficient of Volume | 0.05 |
| Body Material - Valves | Stainless Steel |
| Seal Material - Valves | PTFE |
| Orifice Dia. | 3/64" |
| Safe Working Water Pressure | 500 psi |
| Safe Working Steam Pressure | 500 psi |
| Operation Type | Direct Acting |
| Steam Capacity | 11.8 lb./hr. |
| Max. Fluid Temp. | 400 Degrees F |
| Overall Length | 1-1/2" |
| Overall Height | 2-7/8" |
| For Use With | Dayton Solenoid Coils |
