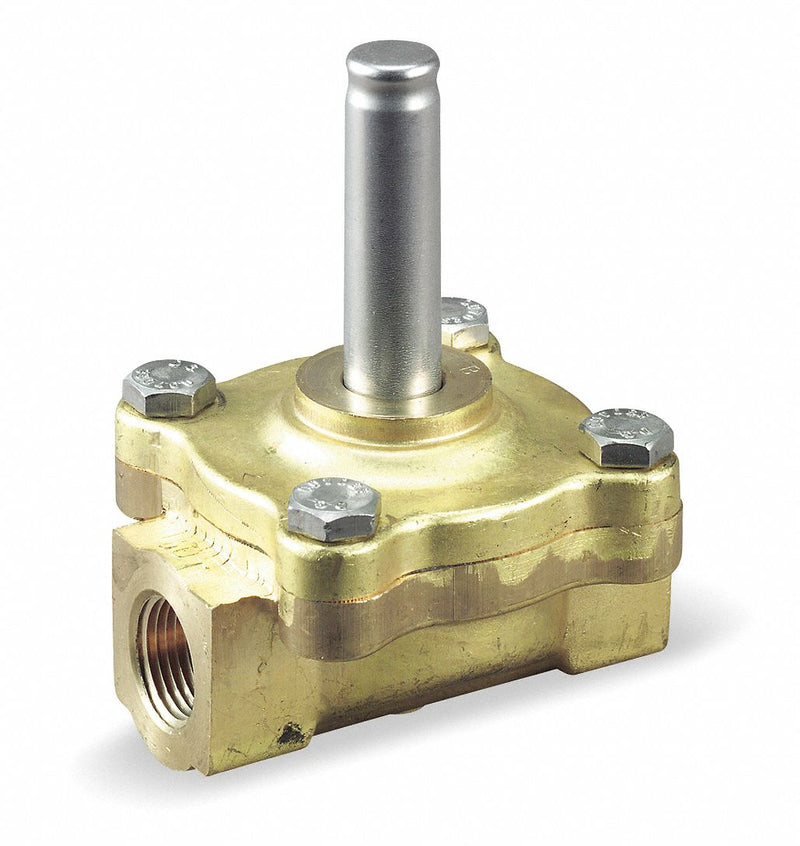

Solenoid Valve Less Coil; Solenoid Valve Product Group: Solenoid Valve Less Coil; Valve Ways and Positions: 2-Way; Valve Configuration: Normally Closed; Media - Valves: Air, Steam, Water; Pipe Size - Valves: 3/8 in; Min. Operating Pressure Differential: 5 psi; Max. Operating Pressure Differential Air/Inert Gas: 150 psi; Max. Operating Pressure Differential Light Oil: 150 psi; Max. Operating Pressure Differential Water: 150 psi; Environmental Rating - Valves: Indoor, Outdoor; Coefficient of Volume: 2.8; Body Material - Valves: Brass; Seal Material - Valves: Buna-N; Orifice Dia.: 5/8"; Safe Working Water Pressure: 300 psi; Operation Type: Pilot Operated; Flow Range: 6.3 to 34.5 gpm; Airflow: 61.6 to 226 scfm; Max. Fluid Temp.: 180 Degrees F; Overall Length: 2-3/4"; Overall Height: 3-1/2"; For Use With: Dayton Solenoid Coils
| Item | Solenoid Valve Less Coil |
| Solenoid Valve Product Group | Solenoid Valve Less Coil |
| Valve Ways and Positions | 2-Way |
| Valve Configuration | Normally Closed |
| Media - Valves | Air, Steam, Water |
| Pipe Size - Valves | 3/8 in |
| Min. Operating Pressure Differential | 5 psi |
| Max. Operating Pressure Differential Air/Inert Gas | 150 psi |
| Max. Operating Pressure Differential Light Oil | 150 psi |
| Max. Operating Pressure Differential Water | 150 psi |
| Environmental Rating - Valves | Indoor, Outdoor |
| Coefficient of Volume | 2.8 |
| Body Material - Valves | Brass |
| Seal Material - Valves | Buna-N |
| Orifice Dia. | 5/8" |
| Safe Working Water Pressure | 300 psi |
| Operation Type | Pilot Operated |
| Flow Range | 6.3 to 34.5 gpm |
| Airflow | 61.6 to 226 scfm |
| Max. Fluid Temp. | 180 Degrees F |
| Overall Length | 2-3/4" |
| Overall Height | 3-1/2" |
| For Use With | Dayton Solenoid Coils |
