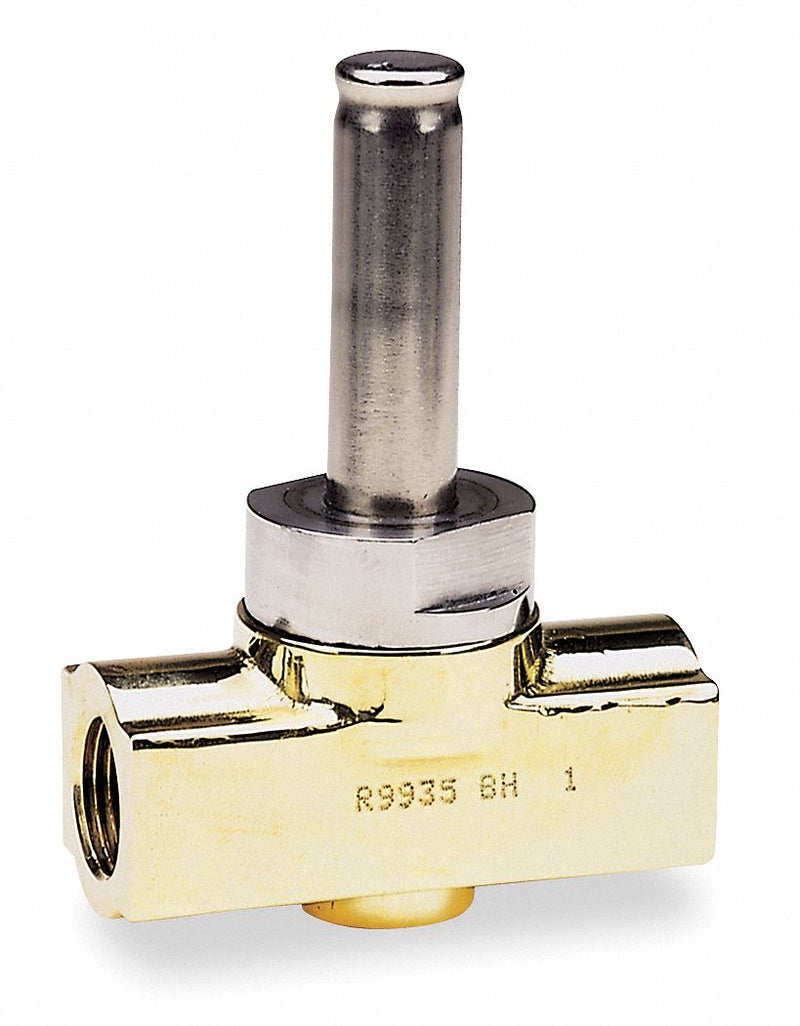

Dayton Brass Steam Solenoid Valve Less Coil, 2-Way Valve Design, Normally Closed Valve Configuration - 16653

DaytonSKU: C1935958
MPN : 16653
Weight : 1.0 lb


$112.85 $182.02

Availability : Usually Ships in 20-30 Business Days

Steam Solenoid Valve Less Coil; Solenoid Valve Product Group: Steam Solenoid Valve Less Coil; Valve Ways and Positions: 2-Way; Valve Configuration: Normally Closed; Media - Valves: Air, Steam, Water; Pipe Size - Valves: 3/8 in; Min. Operating Pressure Differential: 2 psi; Max. Operating Pressure Differential Light Oil: 200 psi; Max. Operating Pressure Differential Water: 200 psi; Environmental Rating - Valves: Indoor, Outdoor; Coefficient of Volume: 2.2; Body Material - Valves: Brass; Seal Material - Valves: EPM; Orifice Dia.: 3/8"; Safe Working Water Pressure: 350 psi; Safe Working Steam Pressure: 350 psi; Operation Type: Pilot Operated; Steam Capacity: 216 lb./hr.; Max. Fluid Temp.: 250 Degrees F; Overall Length: 2-3/8"; Overall Height: 4"; For Use With: Dayton Solenoid Coils

ItemSteam Solenoid Valve Less Coil
Solenoid Valve Product GroupSteam Solenoid Valve Less Coil
Valve Ways and Positions2-Way
Valve ConfigurationNormally Closed
Media - ValvesAir, Steam, Water
Pipe Size - Valves3/8 in
Min. Operating Pressure Differential2 psi
Max. Operating Pressure Differential Light Oil200 psi
Max. Operating Pressure Differential Water200 psi
Environmental Rating - ValvesIndoor, Outdoor
Coefficient of Volume2.2
Body Material - ValvesBrass
Seal Material - ValvesEPM
Orifice Dia.3/8"
Safe Working Water Pressure350 psi
Safe Working Steam Pressure350 psi
Operation TypePilot Operated
Steam Capacity216 lb./hr.
Max. Fluid Temp.250 Degrees F
Overall Length2-3/8"
Overall Height4"
For Use WithDayton Solenoid Coils
