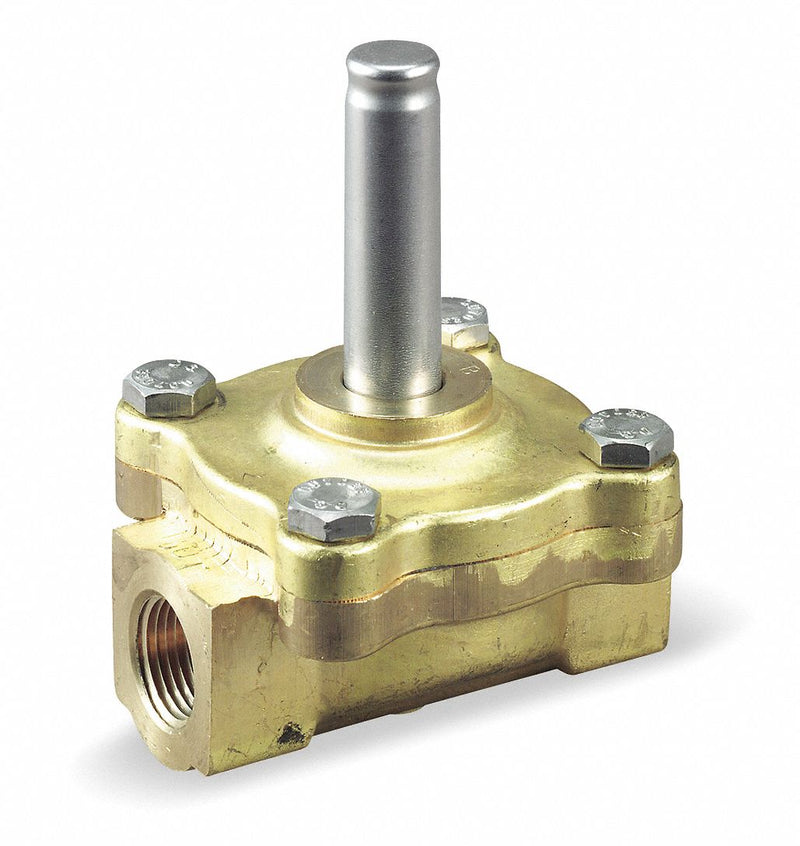

Dayton Brass Steam Solenoid Valve Less Coil, 2-Way Valve Design, Normally Closed Valve Configuration - 8603

DaytonSKU: C1935988
MPN : 8603
Weight : 1.45 lb
filler

Price:
$231.11 $281.84

Availability : Usually Ships in 7-10 Business Days

Steam Solenoid Valve Less Coil; Solenoid Valve Product Group: Steam Solenoid Valve Less Coil; Valve Ways and Positions: 2-Way; Valve Configuration: Normally Closed; Media - Valves: Air, Steam, Water; Pipe Size - Valves: 3/8 in; Min. Operating Pressure Differential: 5 psi; Max. Operating Pressure Differential Light Oil: 150 psi; Max. Operating Pressure Differential Water: 150 psi; Environmental Rating - Valves: Indoor, Outdoor; Coefficient of Volume: 3.5; Body Material - Valves: Brass; Seal Material - Valves: PTFE; Orifice Dia.: 1/2"; Safe Working Water Pressure: 300 psi; Safe Working Steam Pressure: 300 psi; Operation Type: Pilot Operated; Steam Capacity: 864 lb./hr.; Max. Fluid Temp.: 400 Degrees F; Overall Length: 2-1/2"; Overall Height: 4-3/16"; For Use With: Dayton Solenoid Coils

ItemSteam Solenoid Valve Less Coil
Solenoid Valve Product GroupSteam Solenoid Valve Less Coil
Valve Ways and Positions2-Way
Valve ConfigurationNormally Closed
Media - ValvesAir, Steam, Water
Pipe Size - Valves3/8 in
Min. Operating Pressure Differential5 psi
Max. Operating Pressure Differential Light Oil150 psi
Max. Operating Pressure Differential Water150 psi
Environmental Rating - ValvesIndoor, Outdoor
Coefficient of Volume3.5
Body Material - ValvesBrass
Seal Material - ValvesPTFE
Orifice Dia.1/2"
Safe Working Water Pressure300 psi
Safe Working Steam Pressure300 psi
Operation TypePilot Operated
Steam Capacity864 lb./hr.
Max. Fluid Temp.400 Degrees F
Overall Length2-1/2"
Overall Height4-3/16"
For Use WithDayton Solenoid Coils
