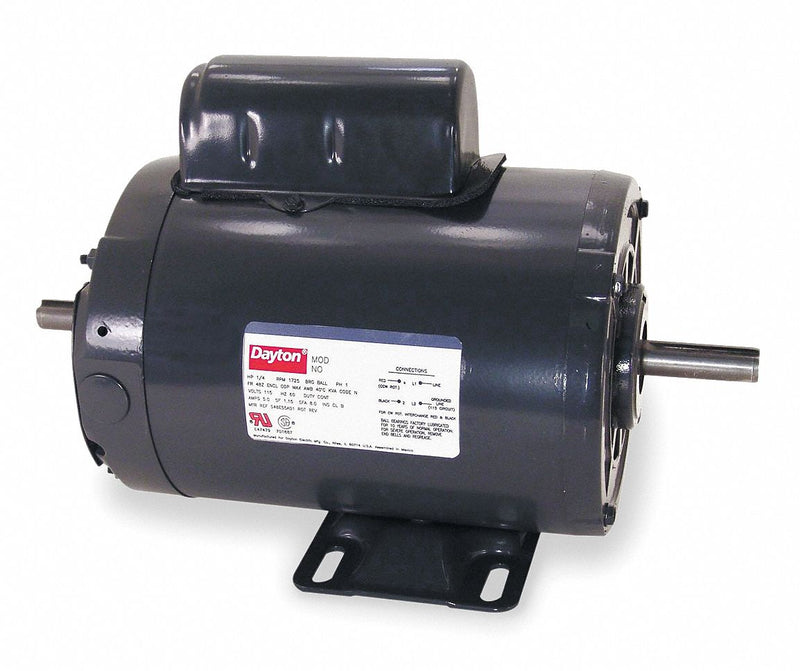

Dual-shaft power tool motor is designed for use in high-speed, moderate-starting-torque woodworking and metalworking tools; wood lathes, sanders, grinders, table saws, planers, and other applications where maximum HP load will not exceed nameplate rating.
| Item | Power Tool Motor |
| Motor Application | Power Tool |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Open Dripproof |
| HP | 1 |
| Nameplate RPM | 3450 |
| Frame | 56 |
| Voltage | 115/230 |
| Hz | 60 |
| Phase | 1 |
| Full Load Amps | 12.6/6.3 |
| Motor Mounting Type | Rigid Base |
| Motor Thermal Protection | Manual |
| Ins. Class | A |
| Motor Service Factor | 1 |
| Motor Bearings | Ball |
| Ambient Temperature | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Length Less Shaft | 8 15/16 in |
| Shaft Dia. | 5/8 in |
| Shaft Length | (2) 1 7/8 in |
| Standards | UL Component Recognized (E47479) and CSA Certified (701887) |
| RPM Range | 3001-3600 |
| Voltage Compatibility | 115, 115/230, 120, 120/240, 230, 240 |
